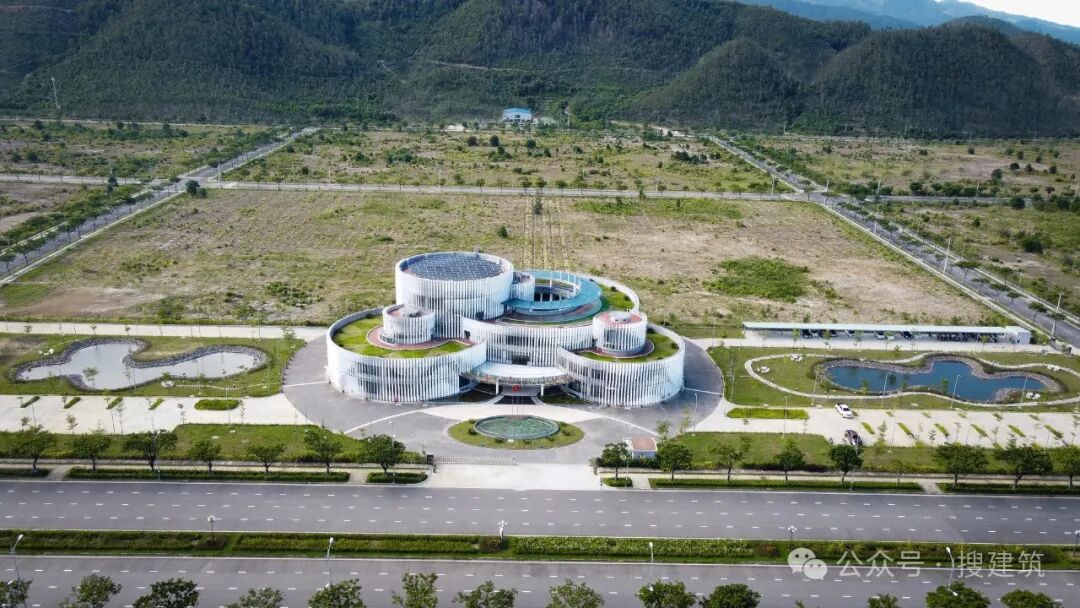

HTP 总部大楼是岘港市北部以信息技术为重点的工业园区的行政中心。建筑造型从齿轮重叠的动态工程图像以及 IT 云技术的理念中汲取灵感--在平面上形成功能的环形重叠，在中间留出共享空间以及自然通风的空隙。

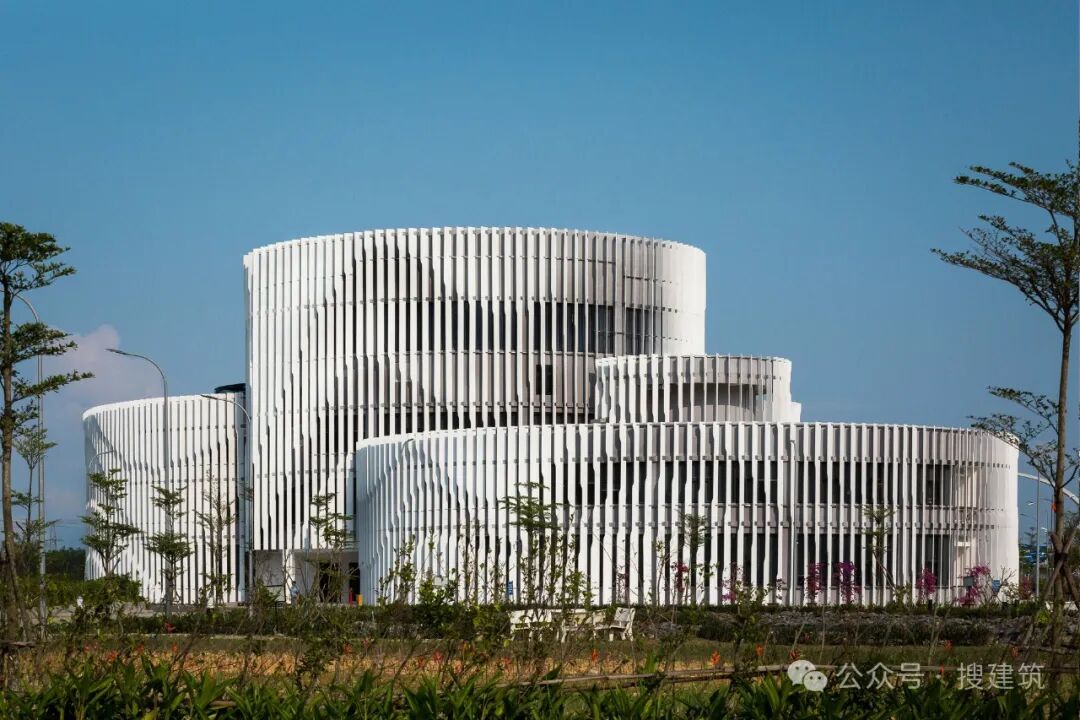

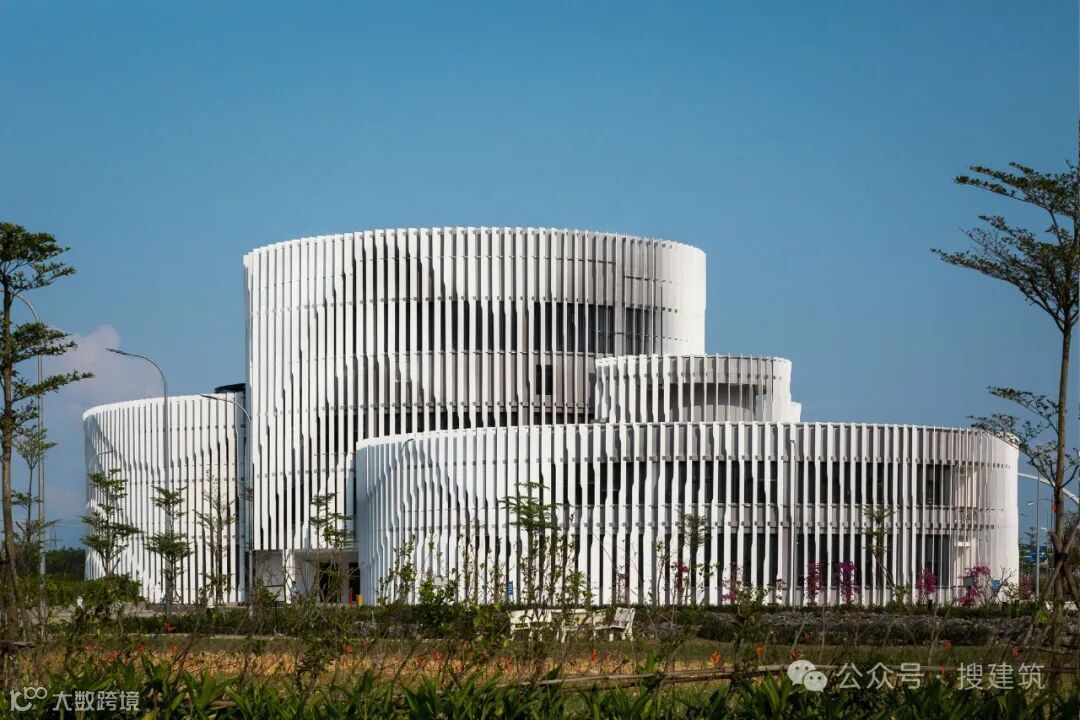

The HTP Headquarters building serves as the administration center for an IT-focused industrial park to the north of Danang City. The building form takes inspiration from dynamic engineering imagery of overlapping gears, as well as the idea of IT Cloud technology – forming a circular overlapping of functions in the plan, allowing in-between shared spaces as well as voids for natural ventilation.

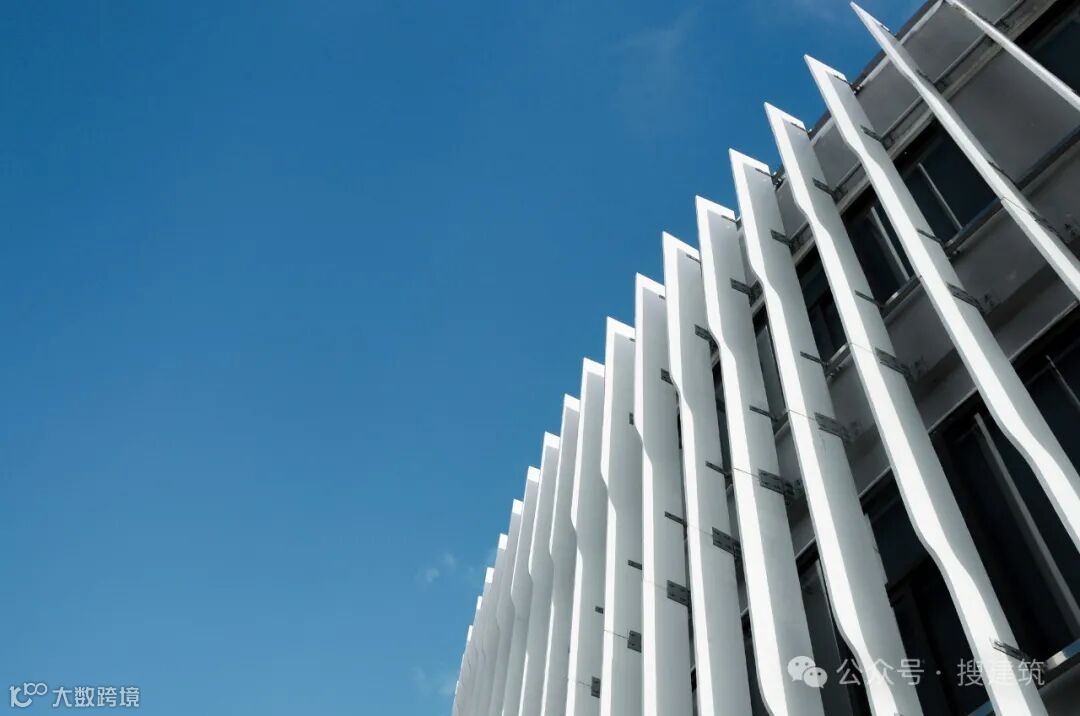

由于建筑的动态形状，能源模拟软件被用来开发用于防晒的参数化鳍片立面系统。每个鳍片的角度都经过了优化，以减少太阳辐射热量和眩光，同时还允许自然光和人员工作区的视野。通过对鳍片轮廓的柔性处理，整个外墙呈现出波光粼粼的涟漪。室内的天然木质镶板也体现了这一理念。

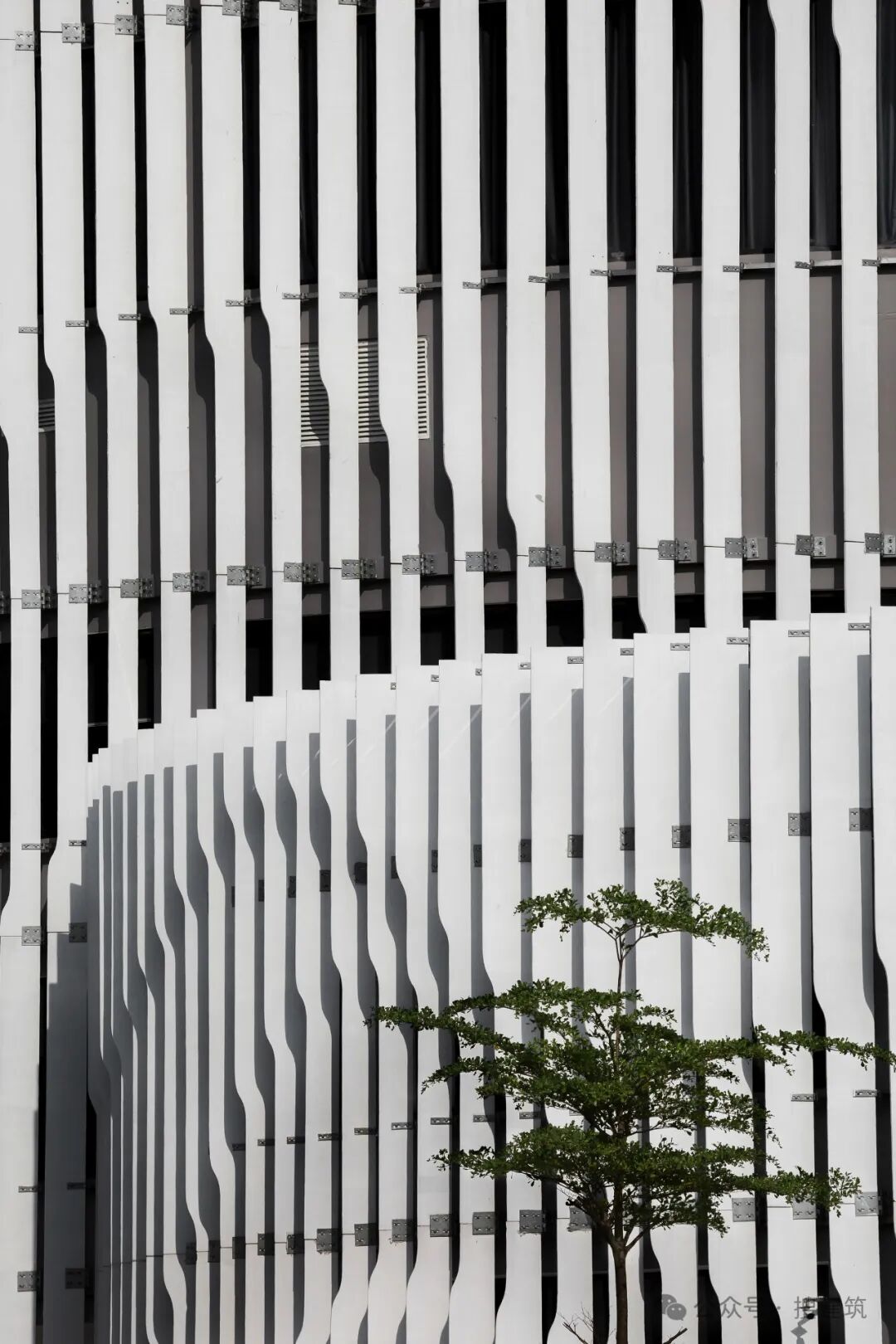

Because of the dynamic shape of the building, energy simulation software was used to develop a parametric fin façade system for solar protection. The angle of each fin is optimized to reduce solar heat gain and glare, while still allowing natural light and views into the working areas for personnel. A shimmering ripple is achieved across the facade through supple manipulation of the fin profiles. This idea is implemented across the interior with natural wood paneling.
建筑的主要功能是行政办公。它还包括一个大礼堂、一个服务器机房以及一个带室外露台的员工食堂。主要空间通过开放式中央中庭在视觉上相互连接。
The primary function of the building is for administrative offices. It also incorporates a large auditorium, a server room, as well as a staff canteen with outdoor terraces. The main spaces are connected visually through the open central atrium.

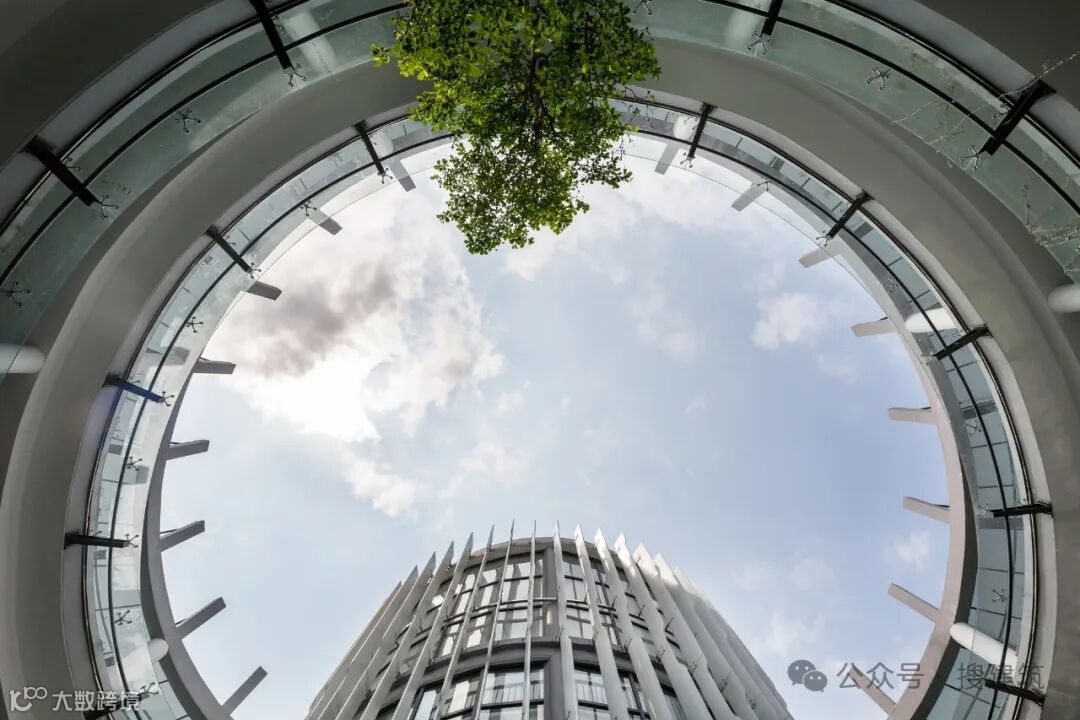

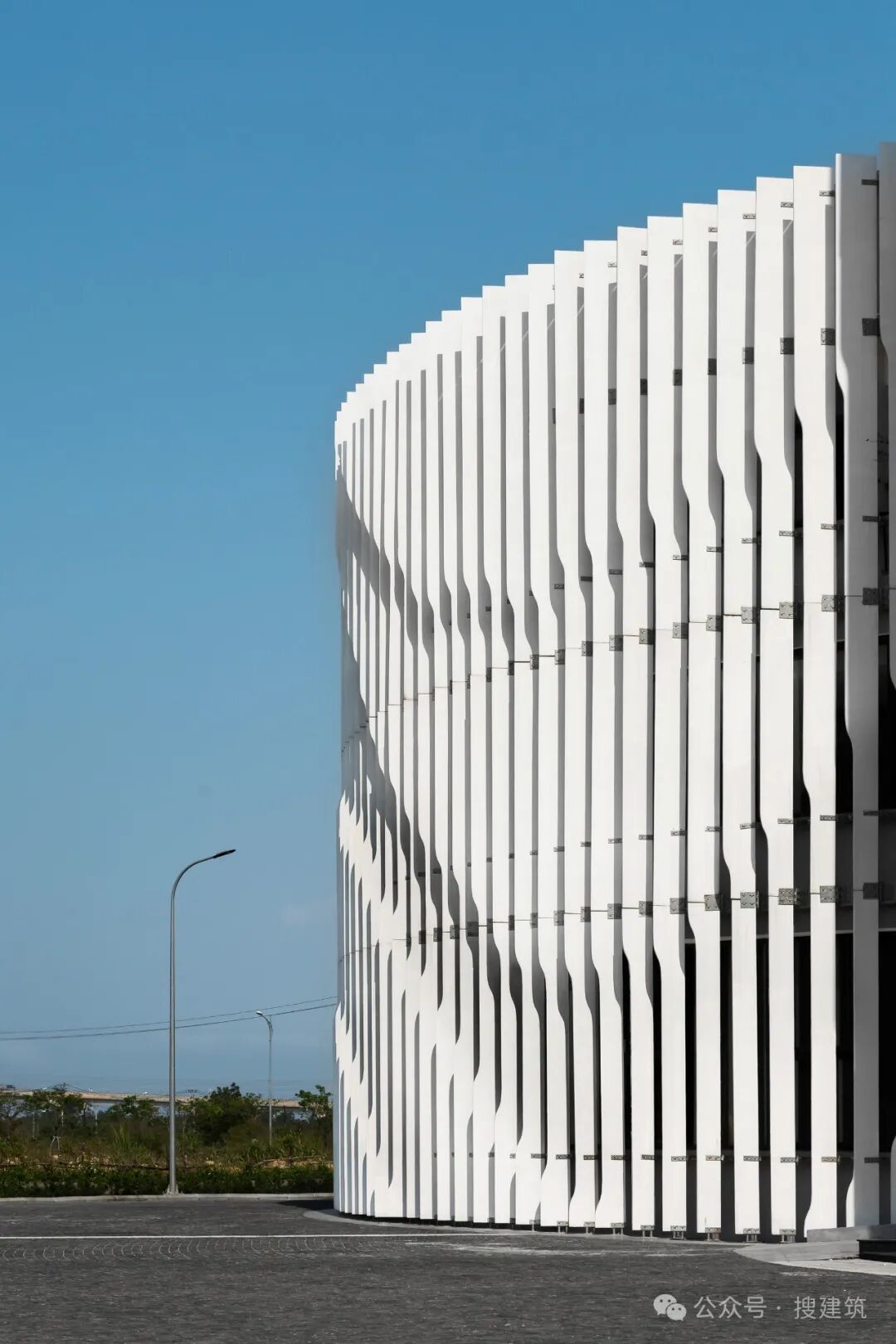

整个建筑都采用了被动式可持续设计，通过大型中央中庭以及较小的中庭楼梯间实现自然采光和空气流通。中庭底部种植的植物为住户提供了自然气息，同时也提供了额外的降温效果。由耐用的低环境影响纤维混凝土制成的遮阳鳍片包裹着整个外墙，以控制太阳能，作为另一层被动式节能措施。
Passive sustainability is employed throughout the building, with natural light and airflow integrated through the large central atrium, as well as smaller atrium stairwells. Planting at the base of the atriums provides a sense of nature for the inhabitants, as well as extra cooling. The sun-shading fins, made from durable low environmental impact fiber-concrete, wrap the entire facade for solar control as another layer of passive energy reduction.

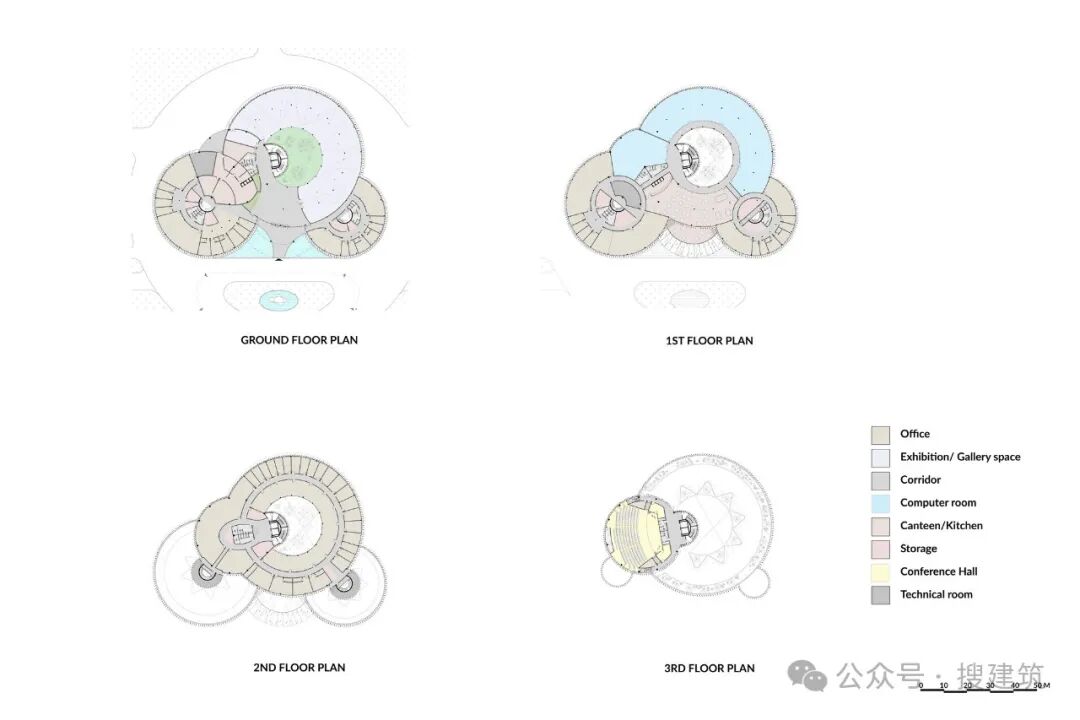

项目图纸

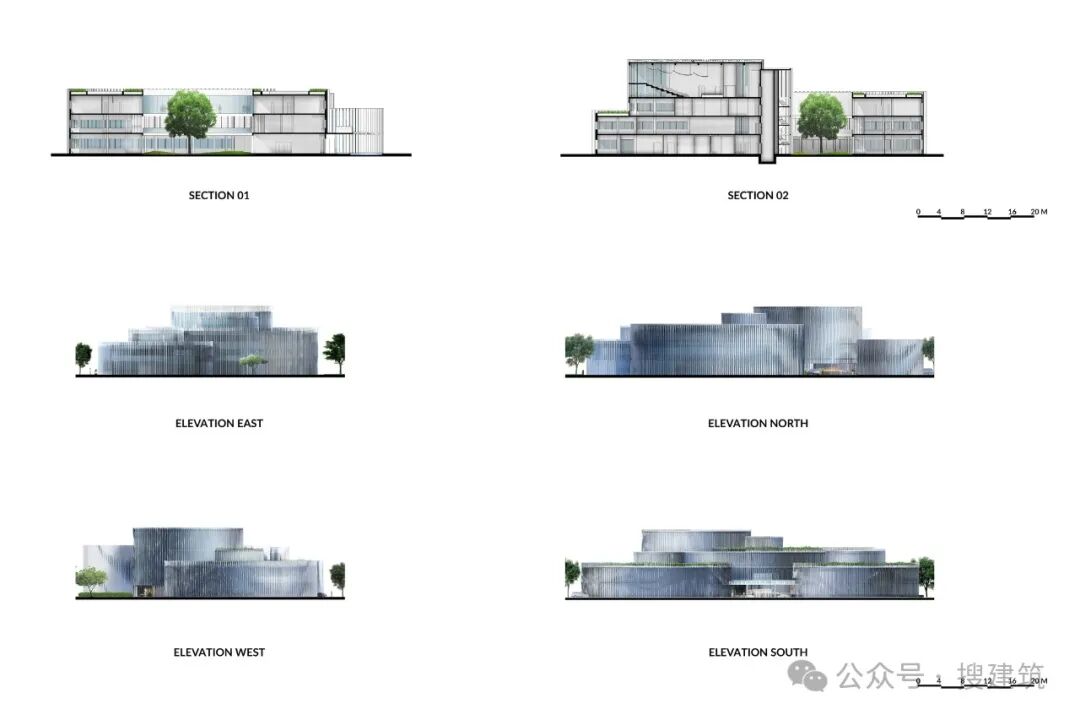

剖面立面图

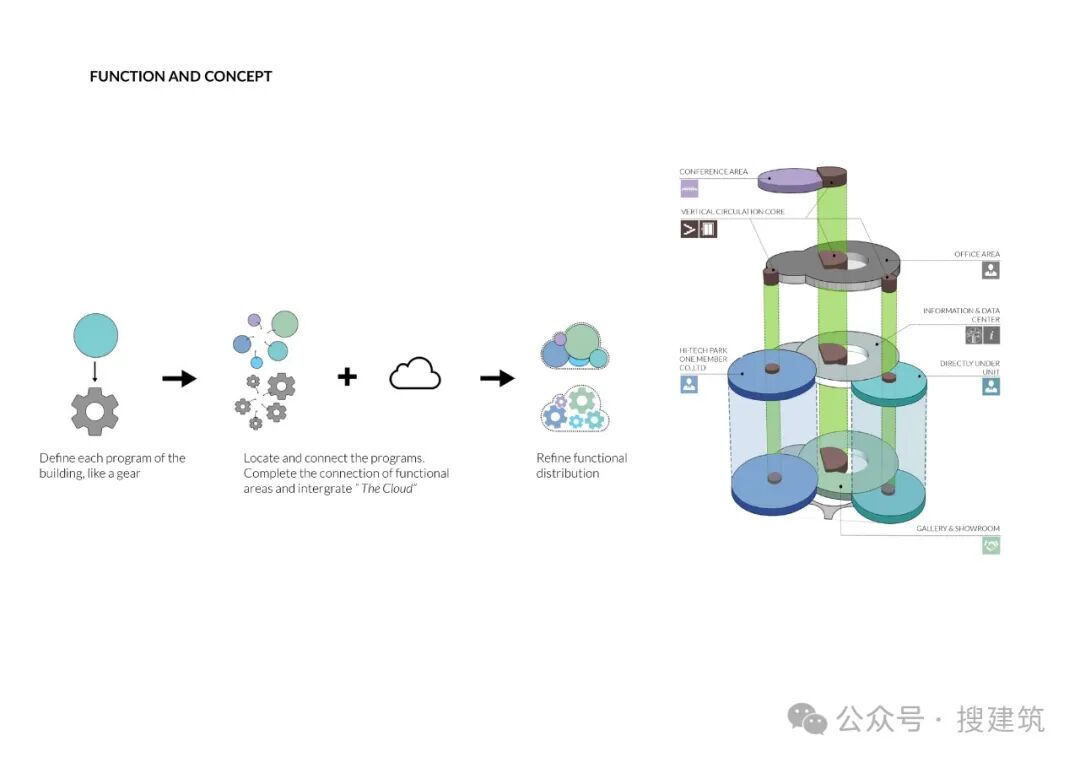

分析图

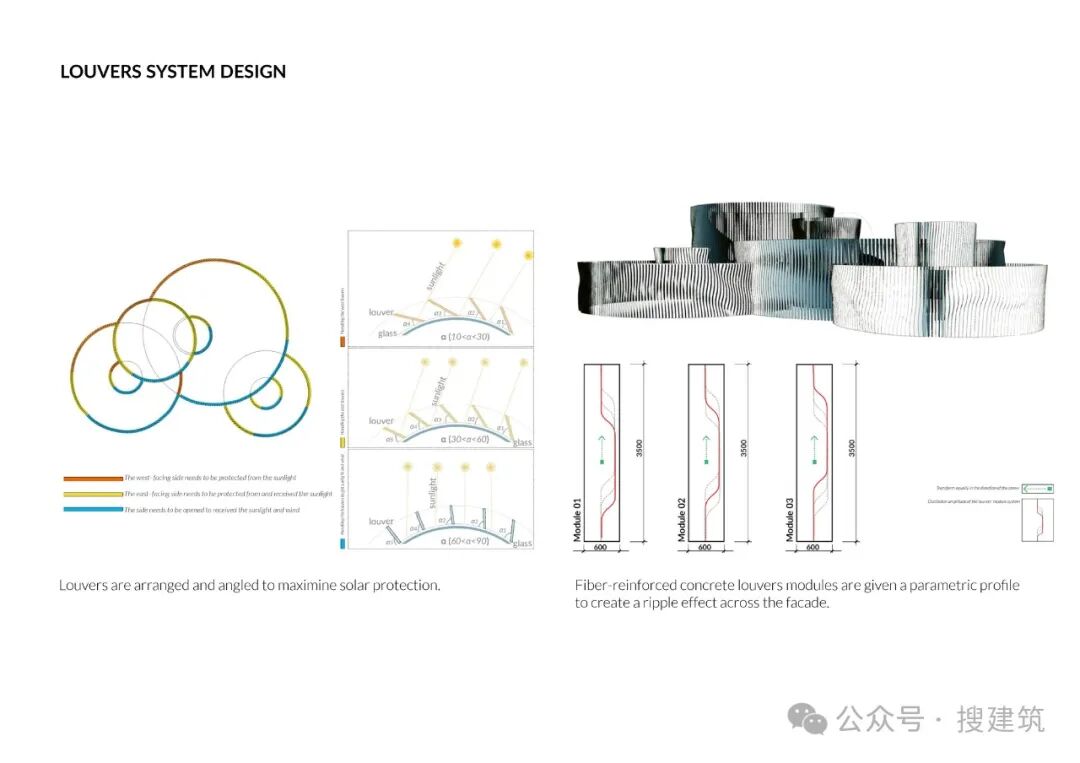

分析图
