导读：动动手写一个简版 asp.net core

动手写一个简版 asp.net core

Intro

之前看到过蒋金楠老师的一篇 200 行代码带你了解 asp.net core 框架，最近参考蒋老师和 Edison 的文章和代码，结合自己对 asp.net core 的理解，最近自己写了一个 MiniAspNetCore ，写篇文章总结一下。

HttpContext

HttpContext 可能是最为常用的一个类了， HttpContext 是请求上下文，包含了所有的请求信息以及响应信息，以及一些自定义的用于在不同中间件中传输数据的信息

来看一下 HttpContext 的定义:


  public class HttpContext
  {
   public IServiceProvider RequestServices { get; set; }


   public HttpRequest Request { get; set; }


   public HttpResponse Response { get; set; }


   public IFeatureCollection Features { get; set; }


   public HttpContext(IFeatureCollection featureCollection)
   {
   Features = featureCollection;
   Request = new HttpRequest(featureCollection);
   Response = new HttpResponse(featureCollection);
   }
  }

HttpRequest 即为请求信息对象，包含了所有请求相关的信息，

HttpResponse 为响应信息对象，包含了请求对应的响应信息

RequestServices 为 asp.net core 里的 RequestServices，代表当前请求的服务提供者，可以使用它来获取具体的服务实例

Features 为 asp.net core 里引入的对象，可以用来在不同中间件中传递信息和用来解耦合

，下面我们就来看下 HttpRequest 和 HttpResponse 是怎么实现的

HttpRequest:


  public class HttpRequest
  {
   private readonly IRequestFeature _requestFeature;


   public HttpRequest(IFeatureCollection featureCollection)
   {
   _requestFeature = featureCollection.Get<IRequestFeature>();
   }


   public Uri Url => _requestFeature.Url;


   public NameValueCollection Headers => _requestFeature.Headers;


   public string Method => _requestFeature.Method;


   public string Host => _requestFeature.Url.Host;


   public Stream Body => _requestFeature.Body;
  }

HttpResponse:


  public class HttpResponse
  {
   private readonly IResponseFeature _responseFeature;


   public HttpResponse(IFeatureCollection featureCollection)
   {
   _responseFeature = featureCollection.Get<IResponseFeature>();
   }


   public bool ResponseStarted => _responseFeature.Body.Length > 0;


   public int StatusCode
   {
   get => _responseFeature.StatusCode;
   set => _responseFeature.StatusCode = value;
   }


   public async Task WriteAsync(byte[] responseBytes)
   {
   if (_responseFeature.StatusCode <= 0)
   {
   _responseFeature.StatusCode = 200;
   }
   if (responseBytes != null && responseBytes.Length > 0)
   {
   await _responseFeature.Body.WriteAsync(responseBytes);
   }
   }
  }

Features

上面我们提到我们可以使用 Features 在不同中间件中传递信息和解耦合

由上面 HttpRequest/ HttpResponse 的代码我们可以看出来， HttpRequest 和 HttpResponse 其实就是在 IRequestFeature 和 IResponseFeature 的基础上封装了一层，真正的核心其实是 IRequestFeature/ IResponseFeature ，而这里使用接口就很好的实现了解耦，可以根据不同的 WebServer 使用不同的 RequestFeature/ ResponseFeature，来看下 IRequestFeature/ IResponseFeature 的实现


  public interface IRequestFeature
  {
   Uri Url { get; }


   string Method { get; }


   NameValueCollection Headers { get; }


   Stream Body { get; }
  }


  public interface IResponseFeature
  {
   public int StatusCode { get; set; }


   NameValueCollection Headers { get; set; }


   public Stream Body { get; }
  }

这里的实现和 asp.net core 的实际的实现方式应该不同，asp.net core 里 Headers 同一个 Header 允许有多个值，asp.net core 里是 StringValues 来实现的，这里简单处理了，使用了一个 NameValueCollection 对象

上面提到的 Features 是一个 IFeatureCollection 对象，相当于是一系列的 Feature 对象组成的，来看下 FeatureCollection 的定义：


  public interface IFeatureCollection : IDictionary<Type, object> { }


  public class FeatureCollection : Dictionary<Type, object>, IFeatureCollection
  {
  }

这里 IFeatureCollection 直接实现 IDictionary<Type,object> ，通过一个字典 Feature 类型为 Key，Feature 对象为 Value 的字典来保存

为了方便使用，可以定义两个扩展方法来方便的Get/Set


  public static class FeatureExtensions
  {
   public static IFeatureCollection Set<TFeature>(this IFeatureCollection featureCollection, TFeature feature)
   {
   featureCollection[typeof(TFeature)] = feature;
   return featureCollection;
   }


   public static TFeature Get<TFeature>(this IFeatureCollection featureCollection)
   {
   var featureType = typeof(TFeature);
   return featureCollection.ContainsKey(featureType) ? (TFeature)featureCollection[featureType] : default(TFeature);
   }
  }

Web服务器

上面我们已经提到了 Web 服务器通过 IRequestFeature/ IResponseFeature 来实现不同 web 服务器和应用程序的解耦，web 服务器只需要提供自己的 RequestFeature/ ResponseFeature 即可

为了抽象不同的 Web 服务器，我们需要定义一个 IServer 的抽象接口，定义如下：


  public interface IServer
  {
   Task StartAsync(Func<HttpContext, Task> requestHandler, CancellationToken cancellationToken = default);
  }

IServer 定义了一个 StartAsync 方法，用来启动 Web服务器，

StartAsync 方法有两个参数，一个是 requestHandler，是一个用来处理请求的委托，另一个是取消令牌用来停止 web 服务器

示例使用了 HttpListener 来实现了一个简单 Web 服务器， HttpListenerServer 定义如下：


  public class HttpListenerServer : IServer
  {
   private readonly HttpListener _listener;
   private readonly IServiceProvider _serviceProvider;


   public HttpListenerServer(IServiceProvider serviceProvider, IConfiguration configuration)
   {
   _listener = new HttpListener();
   var urls = configuration.GetAppSetting("ASPNETCORE_URLS")?.Split(';');
   if (urls != null && urls.Length > 0)
   {
   foreach (var url in urls
   .Where(u => u.IsNotNullOrEmpty())
   .Select(u => u.Trim())
   .Distinct()
   )
   {
   // Prefixes must end in a forward slash ("/")
   // https://stackoverflow.com/questions/26157475/use-of-httplistener
   _listener.Prefixes.Add(url.EndsWith("/") ? url : $"{url}/");
   }
   }
   else
   {
   _listener.Prefixes.Add("http://localhost:5100/");
   }


   _serviceProvider = serviceProvider;
   }


   public async Task StartAsync(Func<HttpContext, Task> requestHandler, CancellationToken cancellationToken = default)
   {
   _listener.Start();
   if (_listener.IsListening)
   {
   Console.WriteLine("the server is listening on ");
   Console.WriteLine(_listener.Prefixes.StringJoin(","));
   }
   while (!cancellationToken.IsCancellationRequested)
   {
   var listenerContext = await _listener.GetContextAsync();


   var featureCollection = new FeatureCollection();
   featureCollection.Set(listenerContext.GetRequestFeature());
   featureCollection.Set(listenerContext.GetResponseFeature());


   using (var scope = _serviceProvider.CreateScope())
   {
   var httpContext = new HttpContext(featureCollection)
   {
   RequestServices = scope.ServiceProvider,
   };


   await requestHandler(httpContext);
   }
   listenerContext.Response.Close();
   }
   _listener.Stop();
   }
  }

HttpListenerServer 实现的 RequestFeature/ ResponseFeatue


  public class HttpListenerRequestFeature : IRequestFeature
  {
   private readonly HttpListenerRequest _request;


   public HttpListenerRequestFeature(HttpListenerContext listenerContext)
   {
   _request = listenerContext.Request;
   }


   public Uri Url => _request.Url;
   public string Method => _request.HttpMethod;
   public NameValueCollection Headers => _request.Headers;
   public Stream Body => _request.InputStream;
  }


  public class HttpListenerResponseFeature : IResponseFeature
  {
   private readonly HttpListenerResponse _response;


   public HttpListenerResponseFeature(HttpListenerContext httpListenerContext)
   {
   _response = httpListenerContext.Response;
   }


   public int StatusCode { get => _response.StatusCode; set => _response.StatusCode = value; }


   public NameValueCollection Headers
   {
   get => _response.Headers;
   set
   {
   _response.Headers = new WebHeaderCollection();
   foreach (var key in value.AllKeys)
   _response.Headers.Add(key, value[key]);
   }
   }


   public Stream Body => _response.OutputStream;
  }

为了方便使用，为 HttpListenerContext 定义了两个扩展方法，就是上面 HttpListenerServer 中的 GetRequestFeature/ GetResponseFeature：


  public static class HttpListenerContextExtensions
  {
   public static IRequestFeature GetRequestFeature(this HttpListenerContext context)
   {
   return new HttpListenerRequestFeature(context);
   }


   public static IResponseFeature GetResponseFeature(this HttpListenerContext context)
   {
   return new HttpListenerResponseFeature(context);
   }
  }

RequestDelegate

在上面的 IServer 定义里有一个 requestHandler 的对象，在 asp.net core 里是一个名称为 RequestDelegate 的对象，而用来构建这个委托的在 asp.net core 里是 IApplicationBuilder，这些在蒋老师和 Edison 的文章和代码里都可以看到，这里我们只是简单介绍下，我在 MiniAspNetCore 的示例中没有使用这些对象，而是使用了自己抽象的 PipelineBuilder 和原始委托实现的

asp.net core 里 RequestDelegate 定义：


  public delegate Task RequestDelegate(HttpContext context);

其实和我们上面定义用的 Func<HttpContext,Task> 是等价的

IApplicationBuilder 定义：


  /// <summary>
  /// Defines a class that provides the mechanisms to configure an application's request pipeline.
  /// </summary>
  public interface IApplicationBuilder
  {
   /// <summary>
   /// Gets or sets the <see cref="T:System.IServiceProvider" /> that provides access to the application's service container.
   /// </summary>
   IServiceProvider ApplicationServices { get; set; }


   /// <summary>
   /// Gets the set of HTTP features the application's server provides.
   /// </summary>
   IFeatureCollection ServerFeatures { get; }


   /// <summary>
   /// Gets a key/value collection that can be used to share data between middleware.
   /// </summary>
   IDictionary<string, object> Properties { get; }


   /// <summary>
   /// Adds a middleware delegate to the application's request pipeline.
   /// </summary>
   /// <param name="middleware">The middleware delegate.</param>
   /// <returns>The <see cref="T:Microsoft.AspNetCore.Builder.IApplicationBuilder" />.</returns>
   IApplicationBuilder Use(Func<RequestDelegate, RequestDelegate> middleware);


   /// <summary>
   /// Creates a new <see cref="T:Microsoft.AspNetCore.Builder.IApplicationBuilder" /> that shares the <see cref="P:Microsoft.AspNetCore.Builder.IApplicationBuilder.Properties" /> of this
   /// <see cref="T:Microsoft.AspNetCore.Builder.IApplicationBuilder" />.
   /// </summary>
   /// <returns>The new <see cref="T:Microsoft.AspNetCore.Builder.IApplicationBuilder" />.</returns>
   IApplicationBuilder New();


   /// <summary>
   /// Builds the delegate used by this application to process HTTP requests.
   /// </summary>
   /// <returns>The request handling delegate.</returns>
   RequestDelegate Build();
  }

我们这里没有定义 IApplicationBuilder，使用了简化抽象的 IAsyncPipelineBuilder，定义如下：


  public interface IAsyncPipelineBuilder<TContext>
  {
   IAsyncPipelineBuilder<TContext> Use(Func<Func<TContext, Task>, Func<TContext, Task>> middleware);


   Func<TContext, Task> Build();


   IAsyncPipelineBuilder<TContext> New();
  }

对于 asp.net core 的中间件来说，上面的 TContext 就是 HttpContext，替换之后也就是下面这样的：


  public interface IAsyncPipelineBuilder<HttpContext>
  {
   IAsyncPipelineBuilder<HttpContext> Use(Func<Func<HttpContext, Task>, Func<HttpContext, Task>> middleware);


   Func<HttpContext, Task> Build();


   IAsyncPipelineBuilder<HttpContext> New();
  }

是不是和 IApplicationBuilder 很像，如果不像可以进一步把 Func<HttpContext,Task> 使用 RequestDelegate 替换


  public interface IAsyncPipelineBuilder<HttpContext>
  {
   IAsyncPipelineBuilder<HttpContext> Use(Func<RequestDelegate, RequestDelegate> middleware);


   RequestDelegate Build();


   IAsyncPipelineBuilder<HttpContext> New();
  }

最后再将接口名称替换一下：


  public interface IApplicationBuilder1
  {
   IApplicationBuilder1 Use(Func<RequestDelegate, RequestDelegate> middleware);


   RequestDelegate Build();


   IApplicationBuilder1 New();
  }

至此，就完全可以看出来了，这 IAsyncPipelineBuilder<HttpContext> 就是一个简版的 IApplicationBuilder

IAsyncPipelineBuilder 和 IApplicationBuilder 的作用是将注册的多个中间件构建成一个请求处理的委托

中间件处理流程：

更多关于 PipelineBuilder 构建中间件的信息可以查看让 .NET 轻松构建中间件模式代码了解更多

WebHost

通过除了 Web 服务器之外，还有一个 Web Host 的概念，可以简单的这样理解，一个 Web 服务器上可以有多个 Web Host，就像 IIS/nginx (Web Server) 可以 host 多个站点

可以说 WebHost 离我们的应用更近，所以我们还需要 IHost 来托管应用


  public interface IHost
  {
   Task RunAsync(CancellationToken cancellationToken = default);
  }

WebHost 定义：


  public class WebHost : IHost
  {
   private readonly Func<HttpContext, Task> _requestDelegate;
   private readonly IServer _server;


   public WebHost(IServiceProvider serviceProvider, Func<HttpContext, Task> requestDelegate)
   {
   _requestDelegate = requestDelegate;
   _server = serviceProvider.GetRequiredService<IServer>();
   }


   public async Task RunAsync(CancellationToken cancellationToken = default)
   {
   await _server.StartAsync(_requestDelegate, cancellationToken).ConfigureAwait(false);
   }
  }

为了方便的构建 Host对象，引入了 HostBuilder 来方便的构建一个 Host，定义如下：


  public interface IHostBuilder
  {
   IHostBuilder ConfigureConfiguration(Action<IConfigurationBuilder> configAction);


   IHostBuilder ConfigureServices(Action<IConfiguration, IServiceCollection> configureAction);


   IHostBuilder Initialize(Action<IConfiguration, IServiceProvider> initAction);


   IHostBuilder ConfigureApplication(Action<IConfiguration, IAsyncPipelineBuilder<HttpContext>> configureAction);


   IHost Build();
  }

WebHostBuilder：


  public class WebHostBuilder : IHostBuilder
  {
   private readonly IConfigurationBuilder _configurationBuilder = new ConfigurationBuilder();
   private readonly IServiceCollection _serviceCollection = new ServiceCollection();


   private Action<IConfiguration, IServiceProvider> _initAction = null;


   private readonly IAsyncPipelineBuilder<HttpContext> _requestPipeline = PipelineBuilder.CreateAsync<HttpContext>(context =>
   {
   context.Response.StatusCode = 404;
   return Task.CompletedTask;
   });


   public IHostBuilder ConfigureConfiguration(Action<IConfigurationBuilder> configAction)
   {
   configAction?.Invoke(_configurationBuilder);
   return this;
   }


   public IHostBuilder ConfigureServices(Action<IConfiguration, IServiceCollection> configureAction)
   {
   if (null != configureAction)
   {
   var configuration = _configurationBuilder.Build();
   configureAction.Invoke(configuration, _serviceCollection);
   }


   return this;
   }


   public IHostBuilder ConfigureApplication(Action<IConfiguration, IAsyncPipelineBuilder<HttpContext>> configureAction)
   {
   if (null != configureAction)
   {
   var configuration = _configurationBuilder.Build();
   configureAction.Invoke(configuration, _requestPipeline);
   }
   return this;
   }


   public IHostBuilder Initialize(Action<IConfiguration, IServiceProvider> initAction)
   {
   if (null != initAction)
   {
   _initAction = initAction;
   }


   return this;
   }


   public IHost Build()
   {
   var configuration = _configurationBuilder.Build();
   _serviceCollection.AddSingleton<IConfiguration>(configuration);
   var serviceProvider = _serviceCollection.BuildServiceProvider();


   _initAction?.Invoke(configuration, serviceProvider);


   return new WebHost(serviceProvider, _requestPipeline.Build());
   }


   public static WebHostBuilder CreateDefault(string[] args)
   {
   var webHostBuilder = new WebHostBuilder();
   webHostBuilder
   .ConfigureConfiguration(builder => builder.AddJsonFile("appsettings.json", true, true))
   .UseHttpListenerServer()
   ;


   return webHostBuilder;
   }
  }

这里的示例我在 IHostBuilder 里增加了一个 Initialize 的方法来做一些初始化的操作，我觉得有些数据初始化配置初始化等操作应该在这里操作，而不应该在 Startup 的 Configure 方法里处理，这样 Configure 方法可以更纯粹一些，只配置 asp.net core 的请求管道，这纯属个人意见，没有对错之分

这里 Host 的实现和 asp.net core 的实现不同，有需要的可以深究源码，在 asp.net core 2.x 的版本里是有一个 IWebHost 的，在 asp.net core 3.x 以及 .net 5 里是没有 IWebHost 的取而代之的是通用主机 IHost，通过实现了一个 IHostedService 来实现 WebHost 的

Run

运行示例代码：


  public class Program
  {
   private static readonly CancellationTokenSource Cts = new CancellationTokenSource();


   public static async Task Main(string[] args)
   {
   Console.CancelKeyPress += OnExit;


   var host = WebHostBuilder.CreateDefault(args)
   .ConfigureServices((configuration, services) =>
   {
   })
   .ConfigureApplication((configuration, app) =>
   {
   app.When(context => context.Request.Url.PathAndQuery.StartsWith("/favicon.ico"), pipeline => { });


   app.When(context => context.Request.Url.PathAndQuery.Contains("test"),
   p => { p.Run(context => context.Response.WriteAsync("test")); });
   app
   .Use(async (context, next) =>
   {
   await context.Response.WriteLineAsync($"middleware1, requestPath:{context.Request.Url.AbsolutePath}");
   await next();
   })
   .Use(async (context, next) =>
   {
   await context.Response.WriteLineAsync($"middleware2, requestPath:{context.Request.Url.AbsolutePath}");
   await next();
   })
   .Use(async (context, next) =>
   {
   await context.Response.WriteLineAsync($"middleware3, requestPath:{context.Request.Url.AbsolutePath}");
   await next();
   })
   ;
   app.Run(context => context.Response.WriteAsync("Hello Mini Asp.Net Core"));
   })
   .Initialize((configuration, services) =>
   {
   })
   .Build();
   await host.RunAsync(Cts.Token);
   }


   private static void OnExit(object sender, EventArgs e)
   {
   Console.WriteLine("exiting ...");
   Cts.Cancel();
   }
  }

在示例项目目录下执行 dotnet run，并访问 http://localhost:5100/:

仔细观察浏览器 console 或 network 的话，会发现还有一个请求，浏览器会默认请求 /favicon.ico 获取网站的图标

因为我们针对这个请求没有任何中间件的处理，所以直接返回了 404

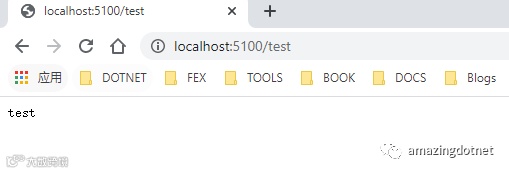

在访问 /test，可以看到和刚才的输出完全不同，因为这个请求走了另外一个分支，相当于 asp.net core 里 Map/ MapWhen 的效果，另外 Run 代表里中间件的中断，不会执行后续的中间件

上面的实现只是我在尝试写一个简版的 asp.net core 框架时的实现，和 asp.net core 的实现并不完全一样，如果需要请参考源码，上面的实现仅供参考，上面实现的源码可以在 Github 上获取 https://github.com/WeihanLi/SamplesInPractice/tree/master/MiniAspNetCore

asp.net core 源码：https://github.com/dotnet/aspnetcore

Reference

https://www.cnblogs.com/artech/p/inside-asp-net-core-framework.html
https://www.cnblogs.com/artech/p/mini-asp-net-core-3x.html
https://www.cnblogs.com/edisonchou/p/aspnet_core_mini_implemention_introduction.html
让 .NET 轻松构建中间件模式代码
让 .NET 轻松构建中间件模式代码（二）
https://github.com/WeihanLi/SamplesInPractice/tree/master/MiniAspNetCore

【声明】内容源于网络

amazingdotnet

dotnet 开发知识库，了不起的 dotnet，dotnet 奇淫怪巧

内容 539

粉丝 0

amazingdotnet dotnet 开发知识库，了不起的 dotnet，dotnet 奇淫怪巧

总阅读212

粉丝0

内容539
