之前录制视频介绍过如何绘制堆积柱形图展示密码子偏向性的内容，但是之前的内容只能画一组堆积柱形图，如果你有好几个物种想要画到一起，可能比较麻烦，我记录一些我自己的画图代码

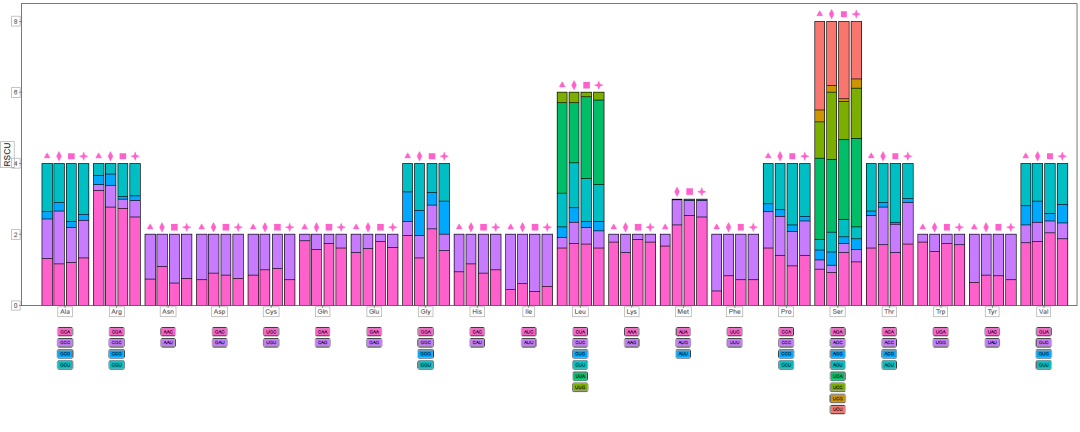

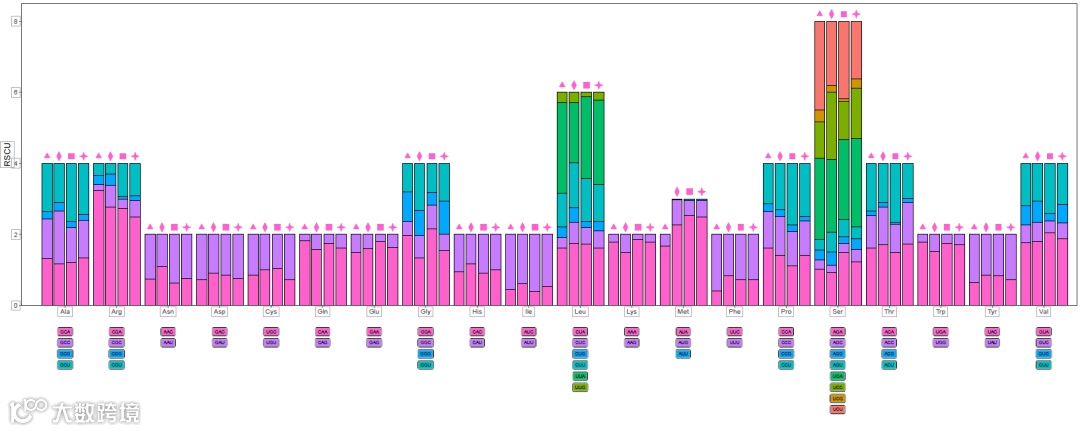

最终效果就是这个样子的，柱子上的形状用来表示分组，可以在右侧添加一个图例写上具体的物种名

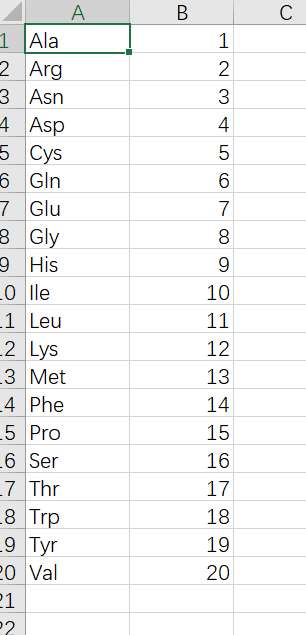

aa.csv文件的内容
RSCU值文件的内容
-
V2是氨基酸 -
V3是密码子 -
V5是RSUC值 -
V6是密码子在下方的位置 -
V7是x轴的位置，取值是1到20
代码应该还有很多需要完善的地方，先在这里记录一下
#rm(list=ls())
library(readr)
library(dplyr)
library(ggplot2)
library(ggstar)
library(aplot)
help(package="ggstar")
df<-read.csv("RSCU/aa.csv",header=F)
head(df)
# df %>%
# arrange(V2,V4,V1) -> df
# dim(df)
read.csv("RSCU/CBS1_rscu.txt",
sep="\t",
na.strings = "*",
header = F) %>%
select(c("V2","V3","V5","V6","V7")) -> cbs1
cbs1 %>%
group_by(V7) %>%
summarise(y=sum(V5)) -> cbs1.1
read.csv("RSCU/DF2_rscu.txt",
sep="\t",
na.strings = "*",
header = F) %>%
select(c("V2","V3","V5","V6","V7")) -> df2
df2 %>%
group_by(V7) %>%
summarise(y=sum(V5)) -> df2.1
read.csv("RSCU/GS1_rscu.txt",
sep="\t",
na.strings = "*",
header = F) %>%
select(c("V2","V3","V5","V6","V7")) -> gs1
gs1 %>%
group_by(V7) %>%
summarise(y=sum(V5)) -> gs1.1
read.csv("RSCU/XZXS1_rscu.txt",
sep="\t",
na.strings = "*",
header = F) %>%
select(c("V2","V3","V5","V6","V7")) -> xzxs1
xzxs1 %>%
group_by(V7) %>%
summarise(y=sum(V5)) -> xzxs1.1
p1<-ggplot()+
geom_bar(data=cbs1,
aes(x=V7,
y=V5,
fill=as.character(V6)),
position = "stack",
stat = "identity",
width = 0.2,
color="black")+
geom_star(data=cbs1.1,aes(x=V7,y=y+0.2),
starshape=11,size=3,
fill="#ff61cc",color="#ff61cc")+
geom_bar(data=df2,
aes(x=V7+0.23,
y=V5,
fill=as.character(V6)),
position = "stack",
stat = "identity",
width = 0.2,
color="black")+
geom_star(data=df2.1,aes(x=V7+0.23,y=y+0.2),
starshape=12,size=3,
fill="#ff61cc",color="#ff61cc")+
geom_bar(data=gs1,
aes(x=V7+0.47,
y=V5,
fill=as.character(V6)),
position = "stack",
stat = "identity",
width = 0.2,
color="black")+
geom_star(data=gs1.1,aes(x=V7+0.47,y=y+0.2),
starshape=13,size=3,
fill="#ff61cc",color="#ff61cc")+
geom_bar(data=xzxs1,
aes(x=V7+0.71,
y=V5,
fill=as.character(V6)),
position = "stack",
stat = "identity",
width = 0.2,
color="black")+
geom_star(data=xzxs1.1,aes(x=V7+0.71,y=y+0.2),
starshape=14,size=3,
fill="#ff61cc",color="#ff61cc")+
theme_bw()+
scale_y_continuous(expand=c(0,0),
limits = c(0,8.5))+
scale_x_continuous(expand = c(0,0),
limits = c(0.5,21),
breaks = seq(1.35,20.35,1),
labels = df$V1)+
labs(y="RSCU",x="")+
theme(legend.position = "none",
panel.grid = element_blank())+
geom_star(aes(x=1.2,y=8),
starshape=11,
size=3,
fill="#ff61cc",
color="#ff61cc")+
geom_text(aes(x=1.3,y=8),label="CBS1",hjust=0)+
geom_star(aes(x=1.2,y=7.7),
starshape=12,
size=3,
fill="#ff61cc",
color="#ff61cc")+
geom_text(aes(x=1.3,y=7.7),label="DF2",hjust=0)+
geom_star(aes(x=1.2,y=7.4),
starshape=13,
size=3,
fill="#ff61cc",
color="#ff61cc")+
geom_text(aes(x=1.3,y=7.4),label="GS1",hjust=0)+
geom_star(aes(x=1.2,y=7.1),
starshape=14,
size=3,
fill="#ff61cc",
color="#ff61cc")+
geom_text(aes(x=1.3,y=7.1),label="XZXS1",hjust=0)
ggsave(filename = "RSCU/p1-2.pdf",
p1,
width = 15,
height = 8)
df2
p2<-ggplot(df2,aes(x=V7+0.35,y=V6))+
geom_label(aes(label=V3,fill=as.character(V6)),
size=2)+
labs(x="",y="")+ylim(2.4,6.1)+
theme_minimal()+
theme(legend.position = "none",
axis.text = element_blank(),
axis.ticks = element_blank(),
panel.grid = element_blank())
p3<-p1%>%
insert_bottom(p2,height = 0.3)
ggsave(filename = "RSCU/p3-1.pdf",
p3,
width = 20,
height = 8)
哈哈哈配图无关哈，只是发现mdnice这个工具的一个新功能~可以插入动图，就试了试
