StainedGlass论文
StainedGlass: interactive visualization of massive tandem repeat structures with identity heatmaps
代码链接 https://mrvollger.github.io/StainedGlass/ https://github.com/mrvollger/StainedGlass
利用基因组数据运行如下命令
snakemake -s ~/biotools/StainedGlass/workflow/Snakefile --configfile=/home/myan/biotools/StainedGlass/config/config.yaml --config sample=Arabidopsis fasta=/data/myan/raw_data/practice/stainedGlass/Col-CEN_v1.2.fasta --cores 24 make_figures -p

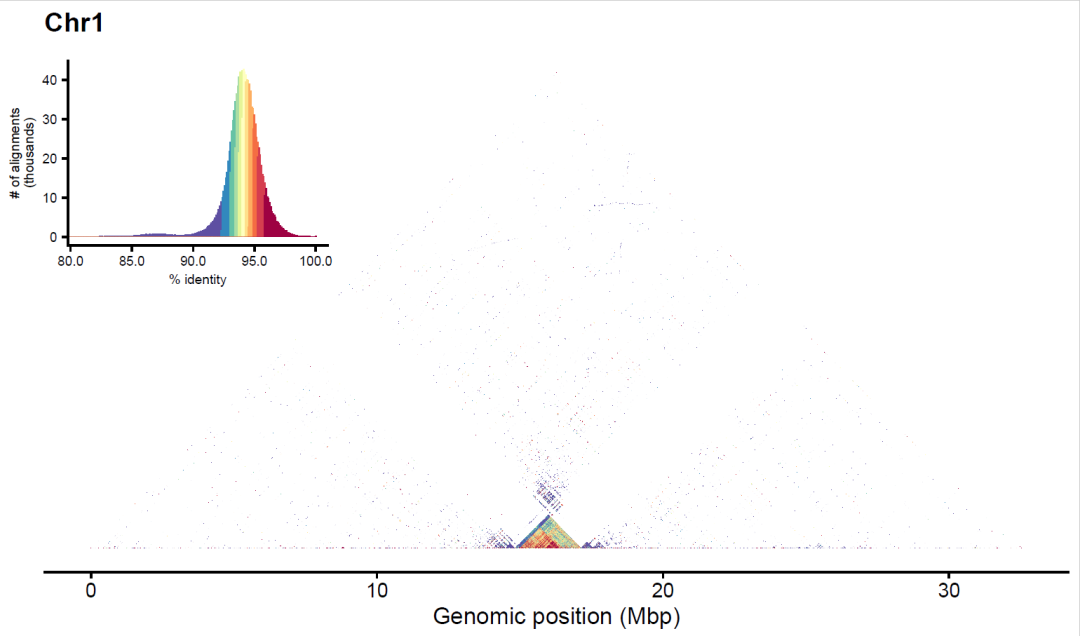

以上命令会生成 Arabidopsis.2000.10000.bed.gz 文件，所有染色体全部在这个文件里，软件生成的1号染色体的图
我们把1号染色体大概14M到19M的区间提取出来，自己作图
library(data.table)
library(tidyverse)
dat<-fread("Arabidopsis.2000.10000.bed.gz")
dat%>%filter(`#query_name`=="Chr1")%>%filter(reference_name=="Chr1")%>%write_tsv("Arabidopsis.Chr1.bed")
dat.at.chr1<-read_tsv("D:/Jupyter/practice/Arabidopsis.Chr1.bed")
dat.at.chr1 %>% colnames()

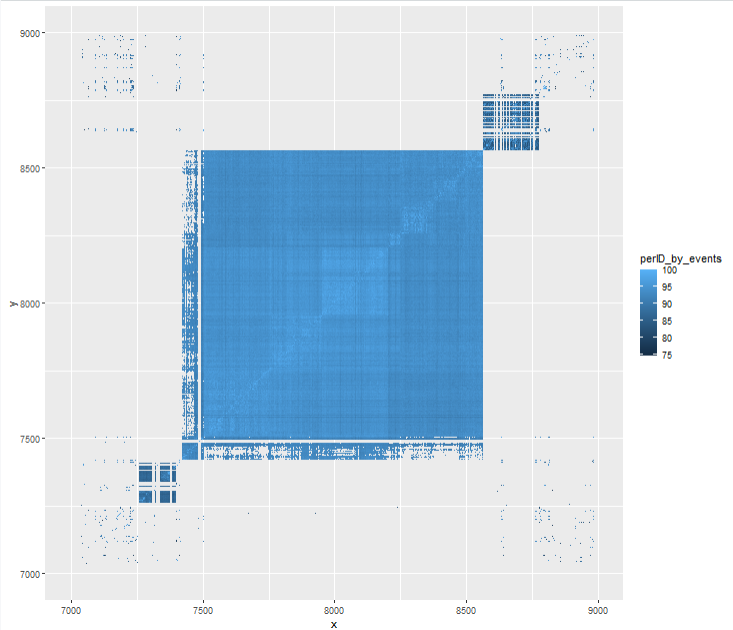

dat.at.chr1 %>%
filter(query_start>=14000000 & query_start<=18000000) %>%
filter(reference_start>=14000000 & reference_start <= 18000000) %>%
mutate(x=query_start/2000,
y=reference_start/2000) %>%
ggplot(aes(x=x,y=y))+
geom_tile(aes(fill=perID_by_events))
把这个图旋转90度，参考 公众号推文 矩形旋转问题之风波再起（老俊俊的生信笔记）这里用到了一个函数getRotatedPolygon 把原始数据进行转换（这里转换的逻辑我暂时还没想明白），这个函数来源于R包BioSeqUtils，我安装这个R包的时候遇到报错，DescTools 这个R包一直没有安装成功。暂时解决不了。不按照这个R包，把这个函数单独复制出来也可以用 https://github.com/junjunlab/BioSeqUtils/blob/master/R/createGraphFuncs.R
getRotatedPolygon <- function(data = NULL, rx = NULL, ry = NULL,
value = NULL,theta = 45, workers = 1,
window = 1) {
# Convert theta to radians
theta_rad <- pi * (theta / 180)
# Set a "plan" for how the code should run.
# future::plan(future::multisession, workers = workers)
# Vectorize the operations
data$x <- data[[rx]]
data$y <- data[[ry]]
data$xr <- data$x * cos(theta_rad) + data$y * sin(theta_rad)
data$yr <- data$y * cos(theta_rad) - data$x * sin(theta_rad)
data$xr <- data$xr * cos(theta_rad)
data$yr <- data$yr * sin(theta_rad)
data$yr <- round(data$yr,digits = 1)
# Combine the results
rotated_coods <- furrr::future_map_dfc(data, identity)
# ============================================================================
# check window size
if(is.numeric(window)){
window_size = window*0.5
}else if(is.character(window)){
window_size = rotated_coods[[window]]*0.5
}else{
message("please supply column name or numeric value!")
}
# get cordinates
polygon_x <- cbind(rotated_coods$xr - window_size, rotated_coods$xr,
rotated_coods$xr + window_size, rotated_coods$xr)
polygon_y <- cbind(rotated_coods$yr, rotated_coods$yr + window_size,
rotated_coods$yr, rotated_coods$yr - window_size)
polygon_id <- rep(1:nrow(rotated_coods), 4)
polygon_value <- rep(rotated_coods[[value]], 4)
# polygon coords
polygon_coods <- data.frame(xp = as.vector(polygon_x),
yp = as.vector(polygon_y),
id = polygon_id,
value = polygon_value)
# ============================================================================
# output
return(list(rotated_coods = rotated_coods,
polygon_coods = polygon_coods))
}
把数据做一个转化
dat.at.chr1 %>%
filter(query_start>=14000000 & query_start<=18000000) %>%
filter(reference_start>=14000000 & reference_start <= 18000000) %>%
mutate(x=query_start/2000,
y=reference_start/2000) %>%
select(x,y,perID_by_events) %>%
pivot_wider(names_from = "y",values_from = "perID_by_events") %>%
mutate_all(~replace(.,is.na(.),0)) %>%
pivot_longer(!x,names_to = "y") %>%
mutate(y=as.numeric(y)) -> new.dat
这里query_start/2000 2000是步长

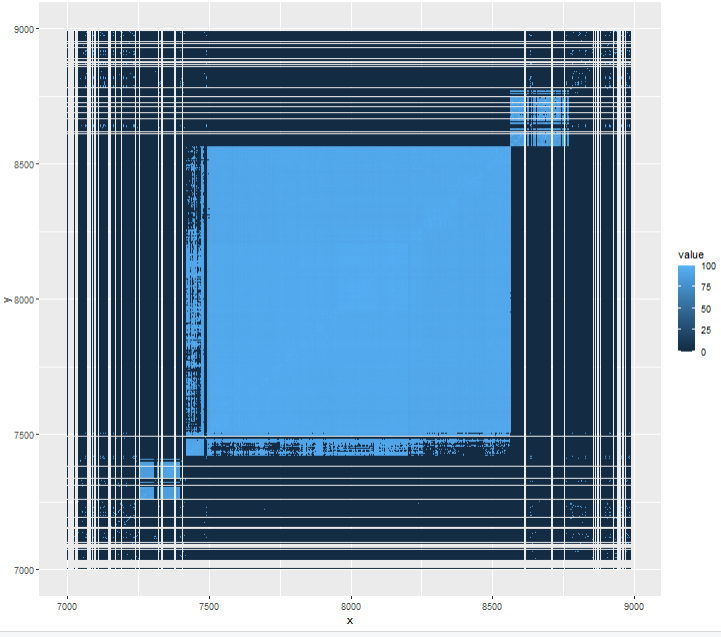

new.dat %>%
ggplot(aes(x=x,y=y))+
geom_tile(aes(fill=value))

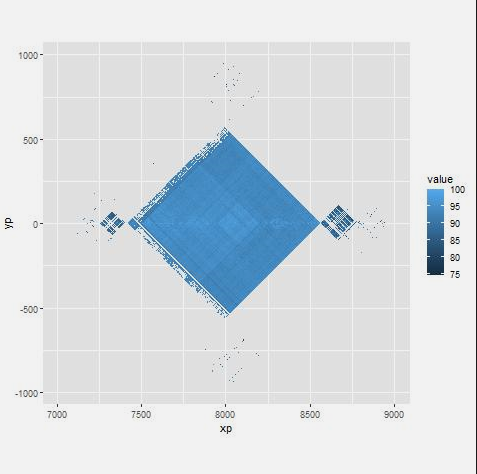

dfr <- getRotatedPolygon(data = new.dat,rx = 'x',ry = 'y',value = 'value',
workers = 1,window = 1)
jpeg(file = "abc.jpeg")
ggplot() +
geom_polygon(data = dfr$polygon_coods %>% filter(value>0),
aes(x = xp,y = yp,group = id,fill=value),
color = NA) +
#ylim(0,NA)+
coord_equal()
dev.off()

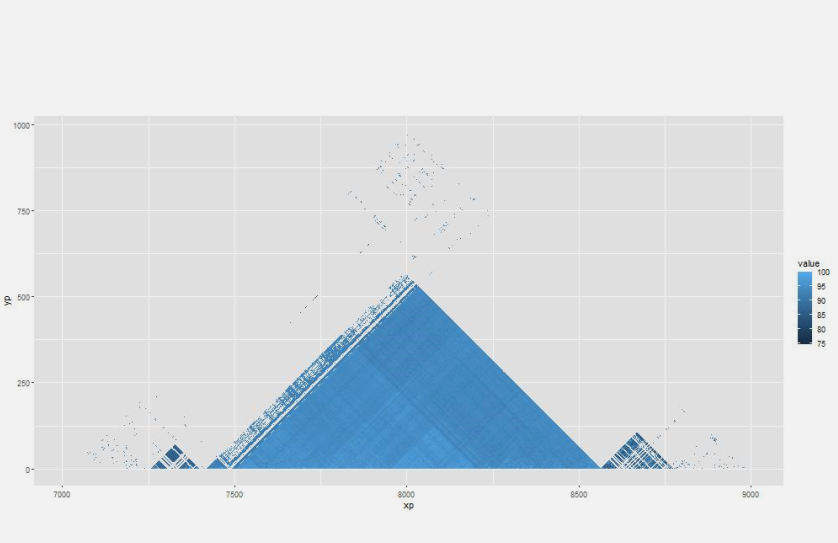

如果要上三角，就把y值设置为大于0，如果要下三角就把y值设置小于0
jpeg(file = "abc1.jpeg",width = 1000,height = 1000)
ggplot() +
geom_polygon(data = dfr$polygon_coods %>% filter(value>0),
aes(x = xp,y = yp,group = id,fill=value),
color = NA) +
#ylim(0,NA)+
coord_equal()+
scale_y_continuous(limits = c(0,NA))
dev.off()
StainedGlass 自带的画图脚本是把连续的值离散化了，离散化的函数是
ncolors <- 11
get_colors <- function(sdf) {
bot <- floor(min(sdf$perID_by_events))
top <- 100
breaks <- unique(c(quantile(sdf$perID_by_events, probs = seq(0, 1, by = 1 / ncolors))))
labels <- seq(length(breaks) - 1)
# corner case of only one %id value
if (length(breaks) == 1) {
return(factor(rep(1, length(sdf$perID_by_events))))
}
return(cut(sdf$perID_by_events, breaks = breaks, labels = labels, include.lowest = TRUE))
}
稍微修改一下
get_colors <- function(x) {
ncolors <- 11
bot <- floor(min(x))
top <- 100
breaks <- unique(c(quantile(x, probs = seq(0, 1, by = 1 / ncolors))))
labels <- seq(length(breaks) - 1)
# corner case of only one %id value
if (length(breaks) == 1) {
return(factor(rep(1, length(x))))
}
return(cut(x, breaks = breaks, labels = labels, include.lowest = TRUE))
}

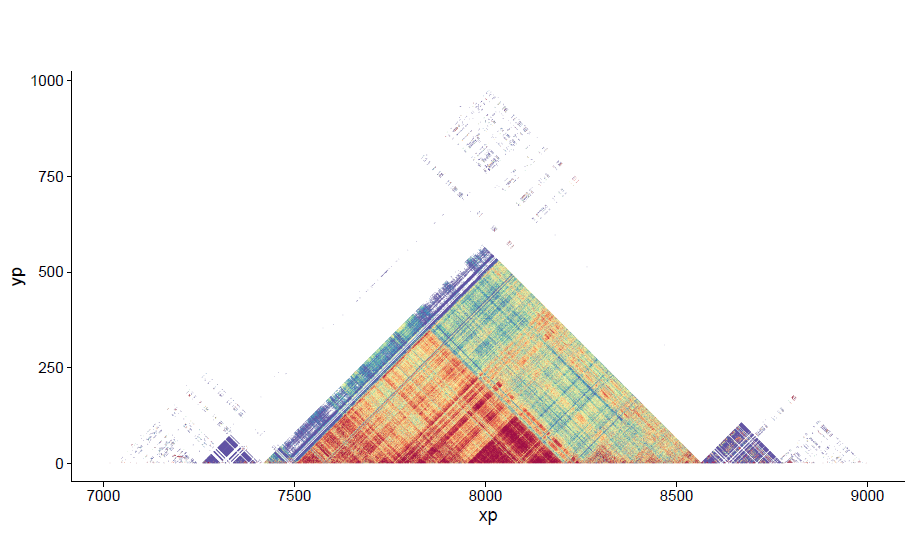

作图代码
dfr$polygon_coods %>% filter(value>0) %>%
mutate(new_value=get_colors(value)) -> new.df.polygon_coods
jpeg(file = "abc3.jpeg",width = 1000,height = 1000)
ggplot() +
geom_polygon(data=new.df.polygon_coods,
aes(x = xp,y = yp,group = id,fill=new_value),
color = NA) +
#ylim(0,NA)+
coord_equal()+
scale_y_continuous(limits = c(0,NA))+
cowplot::theme_cowplot() +
scale_fill_brewer(palette = "Spectral", direction = -1) +
theme(legend.position = "none")
dev.off()
pdf(file = "abc3.pdf",width = 10,height = 10)
ggplot() +
geom_polygon(data=new.df.polygon_coods,
aes(x = xp,y = yp,group = id,fill=new_value),
color = NA) +
#ylim(0,NA)+
coord_equal()+
scale_y_continuous(limits = c(0,NA))+
cowplot::theme_cowplot() +
scale_fill_brewer(palette = "Spectral", direction = -1) +
theme(legend.position = "none")
dev.off()

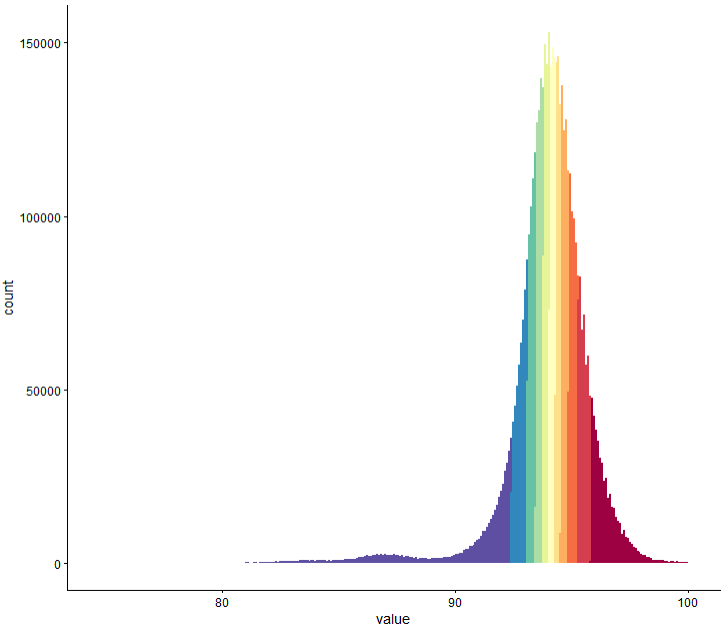

左上角的图
ggplot(data = new.df.polygon_coods,
aes(value, fill = new_value)) +
geom_histogram(bins = 300) +
cowplot::theme_cowplot() +
scale_fill_brewer(palette = "Spectral", direction = -1) +
theme(legend.position = "none")

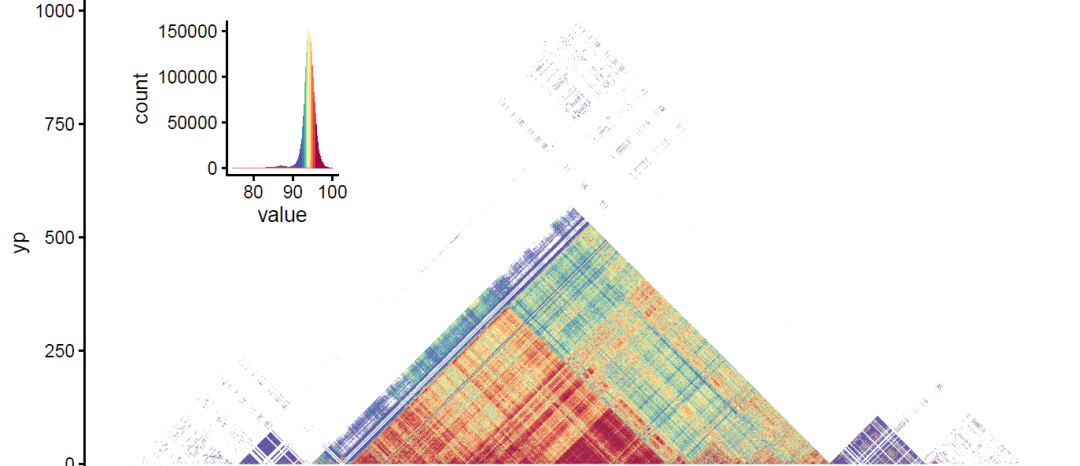

把两个图组合到一起
p_lone<-ggplot() +
geom_polygon(data=new.df.polygon_coods,
aes(x = xp,y = yp,group = id,fill=new_value),
color = NA) +
#ylim(0,NA)+
coord_equal()+
scale_y_continuous(limits = c(0,NA))+
cowplot::theme_cowplot() +
scale_fill_brewer(palette = "Spectral", direction = -1) +
theme(legend.position = "none")
p_hist<-ggplot(data = new.df.polygon_coods,
aes(value, fill = new_value)) +
geom_histogram(bins = 300) +
cowplot::theme_cowplot() +
scale_fill_brewer(palette = "Spectral", direction = -1) +
theme(legend.position = "none")
pdf(file = "abc4.pdf",width = 10,height = 10)
plot <- p_lone + annotation_custom(
ggplotGrob(p_hist),
xmin = 7000, xmax = 7500,
ymin = 500, ymax = 1000
)
print(plot)
dev.off()
其他知识点 R语言数据框填充缺失值
https://stackoverflow.com/questions/8161836/how-do-i-replace-na-values-with-zeros-in-an-r-dataframe
dat<-data.frame(x=c(1,2,NA),y=c(4,NA,6),z=c(NA,8,9))
dat
dat %>%
mutate_all(~replace(.,is.na(.),0))
dat %>%
replace_na(list(x=0,y=100,z=1000))
如果是字符变量带因子水平填充缺失值会失败，需要把因子水平去掉
欢迎大家关注我的公众号
小明的数据分析笔记本
小明的数据分析笔记本 公众号 主要分享：1、R语言和python做数据分析和数据可视化的简单小例子；2、园艺植物相关转录组学、基因组学、群体遗传学文献阅读笔记；3、生物信息学入门学习资料及自己的学习笔记！
微信公众号好像又有改动，如果没有将这个公众号设为星标的话，会经常错过公众号的推文，个人建议将 小明的数据分析笔记本 公众号添加星标，添加方法是

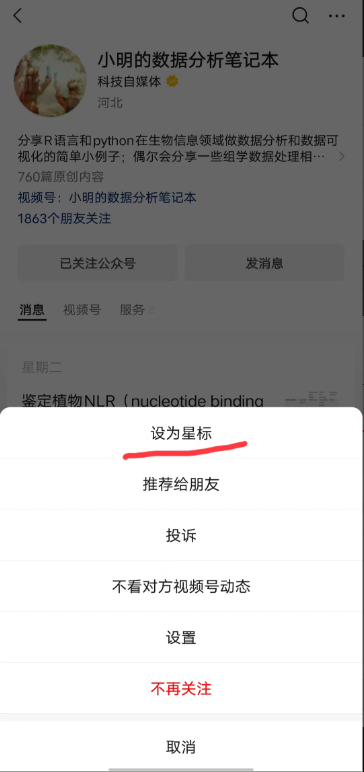

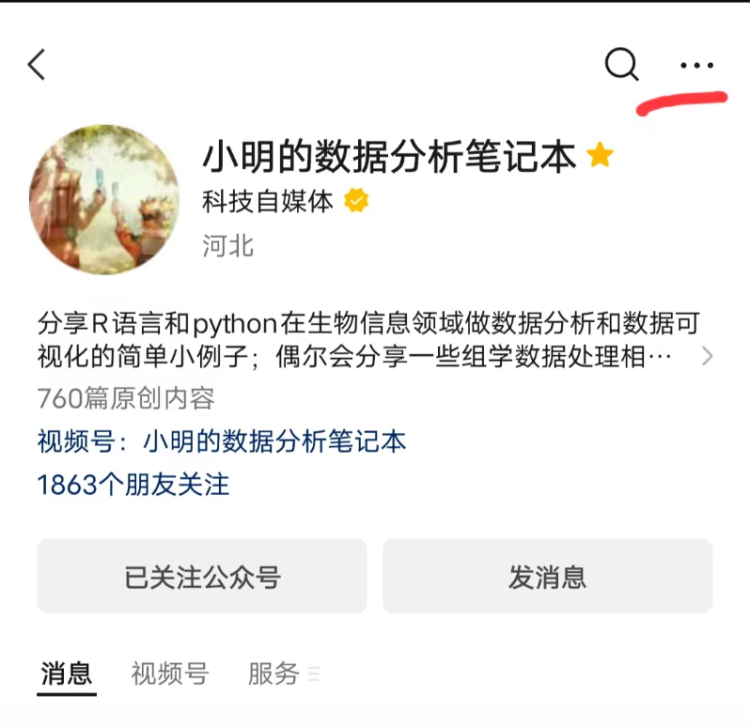

点开公众号的页面，右上角有三个点
