本节继续介绍通过ggplot2来绘制环状条形图，重点使用annotate函数对数据进行注释,后台回复20210816获取本文数据及代码，喜欢的小伙伴欢迎扫描文末二维码加入我的交流群更多精彩内容为您而准备
library(tidyverse)
自定义颜色
colors <-c("#FED439FF","#709AE1FF",
"#D5E4A2FF","#197EC0FF","#F05C3BFF","#46732EFF",
"#71D0F5FF","#370335FF","#075149FF","#C80813FF","#91331FFF",
"#1A9993FF","#FD8CC1FF")
构建数据
data1 <- mtcars %>% head(6) %>%
mutate_if(is.numeric, function(x) x+10) %>%
log10() %>% as.data.frame() %>%
rownames_to_column("type") %>%
pivot_longer(-type) %>% arrange(name) %>%
mutate(type=factor(type))
计算角度
计算标签的对齐方式：右对齐还是左对齐
如果在图的左侧，则标签当前的角度 < -90
hjust=0表示左对齐;1表示右对齐
empty_bar <- 0
data1$id <- seq(1,nrow(data1))
label_data <- data1
number_of_bar <- nrow(label_data)
angle <- 90 - 360 * (label_data$id-0.5) /number_of_bar
label_data$hjust<-ifelse( angle < -90, 1, 0)
label_data$angle<-ifelse(angle < -90, angle+180, angle)
构建分组线段
df <- data1 %>%
group_by(name) %>%
summarize(start=min(id), end=max(id) - empty_bar) %>%
rowwise() %>%
mutate(title=mean(c(start,end))) %>%
mutate(name=as.factor(name))

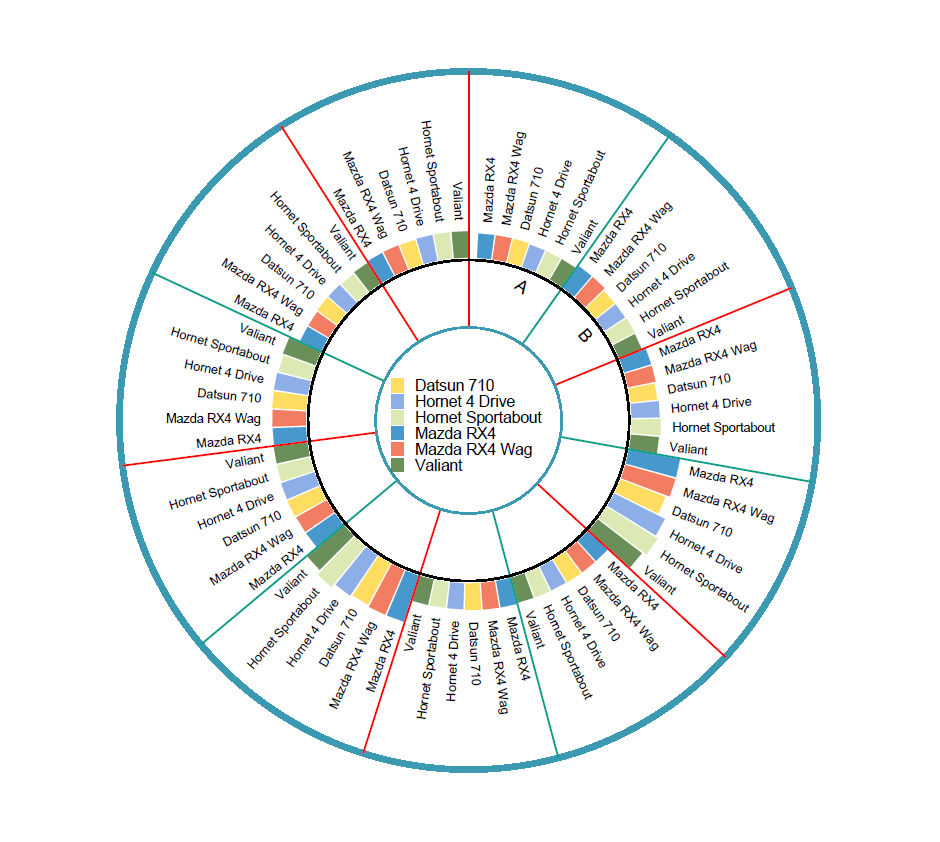

数据可视化
ggplot(data1,aes(id,value,fill=type))+
geom_bar(stat="identity",alpha=0.8)+
scale_fill_manual(values = colors)+
labs(x=NULL,y=NULL)+
ylim(-7,8)+
coord_polar(start = 0)+
theme_void()+
theme(
legend.text = element_text(color="black"),
legend.title=element_blank(),
legend.spacing.x=unit(0.2,'cm'),
legend.key=element_blank(),
legend.key.width=unit(0.3,'cm'),
legend.key.height=unit(0.3,'cm'),
legend.position=c(0.5,0.5))+
# 添加分组线段
# geom_segment(data=df,aes(x = start,y =-0.3,xend = end,yend =-0.3),
# colour = "black",alpha=0.8,size=0.5,inherit.aes = FALSE)+
# 添加标签
geom_text(data=label_data,aes(x=id, y=value+0.5,label=type, hjust=hjust),
color="black", fontface="plain",size=2.5,
angle= label_data$angle, inherit.aes = FALSE )+
# 添加文本
annotate("text",x=4,y=-0.8,label="A",angle=-35,size=3.5,color="black")+
annotate("text",x=10,y=-0.8,label="B",angle=-50,size=3.5,color="black")+
# 添加外圈
geom_segment(aes(x=0, y=8,xend=66.5,yend =8),size=1.5,color="#3B9AB2",
arrow = arrow(length = unit(0, "npc"),type="closed"))+
# 添加竖线
annotate("segment",x=0,xend =0,y=-3,yend =8,colour="#FF0000")+
annotate("segment",x=6.5,xend =6.5,y=-3,yend =8,colour="#00A08A")+
annotate("segment",x=12.5,xend =12.5,y=-3,yend=8,colour="#FF0000")+
annotate("segment",x=18.5,xend =18.5,y=-3,yend =8,colour="#00A08A")+
annotate("segment",x=24.5,xend =24.5,y=-3,yend =8,colour="#FF0000")+
annotate("segment",x=30.5,xend =30.5,y=-3,yend =8,colour="#00A08A")+
annotate("segment",x=36.5,xend =36.5,y=-3,yend =8,colour="#FF0000")+
annotate("segment",x=42.5, xend =42.5,y=-3,yend =8,colour="#00A08A")+
annotate("segment",x=48.5,xend =48.5,y=-3,yend =8,colour="#FF0000")+
annotate("segment",x=54.5,xend =54.5,y=-3,yend =8,colour="#00A08A")+
annotate("segment",x=60.5,xend =60.5,y=-3,yend =8,colour="#FF0000")+
# 添加内圈
geom_segment(aes(x=0, y=-3,xend=66.5,yend =-3),size=0.5,color="#3B9AB2",
arrow = arrow(length = unit(0, "npc"),type="closed"))+
geom_segment(aes(x=0, y=-0.1,xend=66.5,yend =-0.1),size=0.5,color="black",
arrow = arrow(length = unit(0, "npc"),type="closed"))
