本节继续来对箱线图进行更加深入的优化，通过iris数据来绘制云雨图，下面让我们来具体实践
R包的安装与加载
package.list=c("tidyverse","ggdist")
for (package in package.list) {
if (!require(package,character.only=T, quietly=T)) {
install.packages(package)
library(package, character.only=T)
}
}
准备数据集，本次我们使用iris数据集，下面先对数据进行清洗
df <- iris %>% select(1,2,5) %>%
mutate(ratio = Sepal.Length/ Sepal.Width) %>% as_tibble() %>%
filter(!is.na(ratio)) %>% group_by(Species) %>%
mutate(median = median(ratio),
q25 = quantile(ratio, probs = .25),
q75 = quantile(ratio, probs = .75),
n = n()) %>% ungroup() %>%
mutate(Species_num = as.numeric(fct_rev(Species))) %>% select(-1,-2)

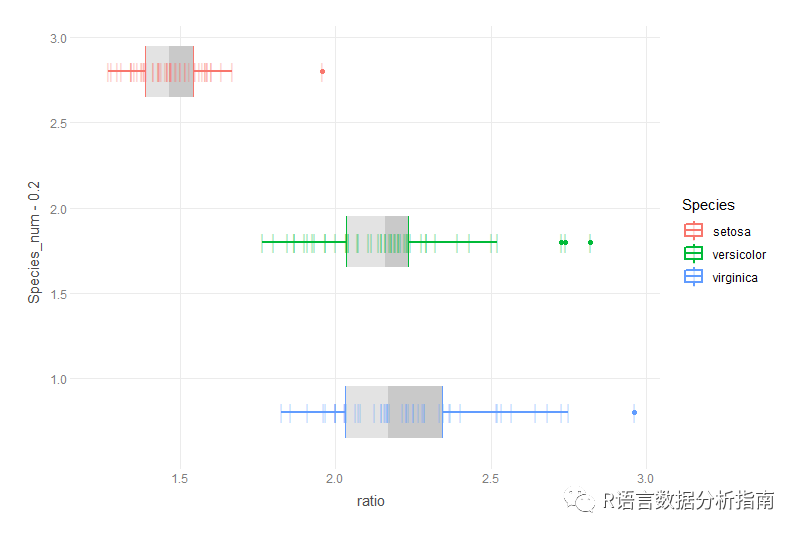

绘制箱图
P <- ggplot(df,aes(ratio,Species_num -.2)) +
geom_boxplot(aes(color = Species),width = 0,size = .9)+
geom_rect(aes(xmin = q25,xmax = median,ymin = Species_num - .35,ymax = Species_num - .05),
fill = "grey89")+
geom_rect(aes(xmin = median,xmax = q75,ymin = Species_num - .35,ymax = Species_num - .05),
fill = "grey79")+
geom_segment(aes(x = q25, xend = q25,y = Species_num - .05,yend = Species_num - .35,
color = Species),size = .25)+
geom_segment(aes(x = q75, xend = q75,y = Species_num - .05,
yend = Species_num - .35,color = Species),size = .25)+
geom_point(aes(color = Species),shape = "|",size = 5,alpha = .33) # 用`|`来取代点

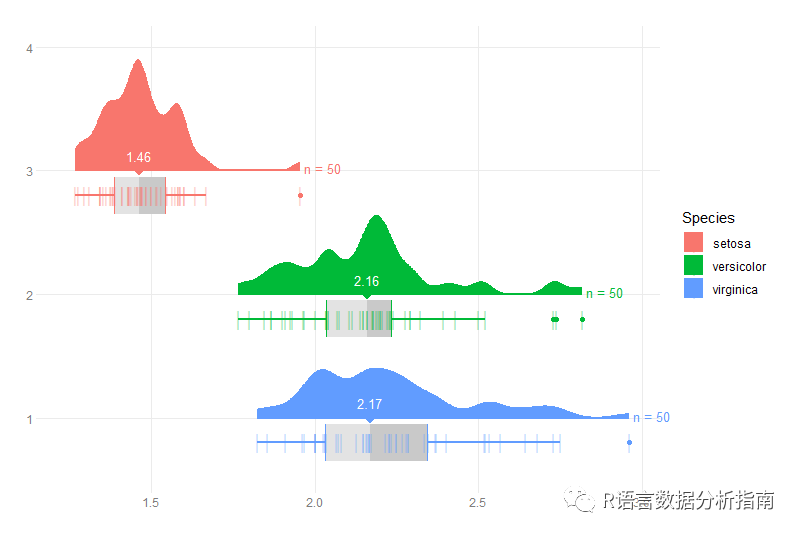

ggdist绘制密度图
pp <- P + ggdist::stat_halfeye(aes(y = Species_num,color = Species,fill = Species),
shape =18,point_size =3,interval_size =1.8,
adjust =.5,.width = c(0,1))+
geom_text(data = df %>% group_by(Species, Species_num) %>%
summarize(m = unique(median)),
aes(x = m, y = Species_num + .12,
label = format(round(m, 2), nsmall = 2)),
inherit.aes = F,color = "white",size = 3.5) +
geom_text(data = df %>%
group_by(Species,Species_num) %>%
summarize(n = unique(n),max = max(ratio, na.rm = T)),
aes(x = max + .01, y = Species_num + .02,
label = glue::glue("n = {n}"),
color = Species),inherit.aes = F,
size = 3.5,hjust = 0) +
coord_cartesian(clip = "off")+
xlab(NULL)+ylab(NULL)

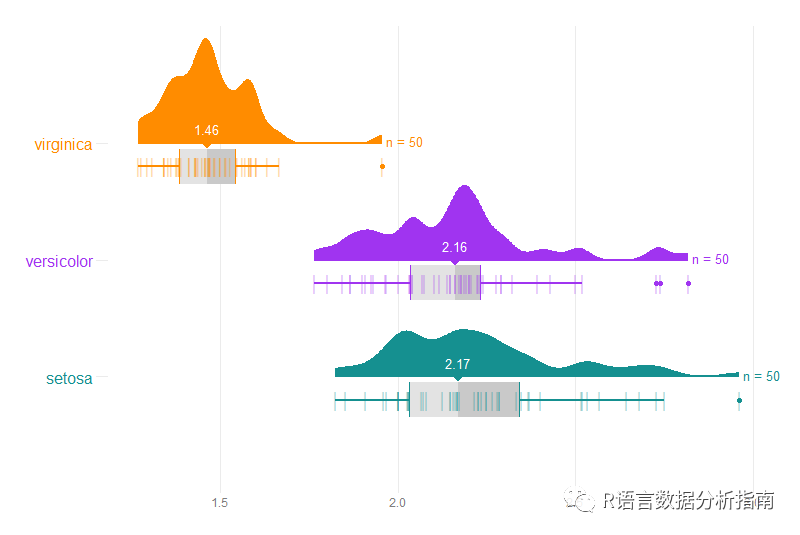

更改颜色主题
pp + scale_y_continuous(limits =c(.1, NA),breaks = 1:3,
labels = c("setosa","versicolor", "virginica"),
expand = c(0, 0))+
scale_color_manual(values = c("#FF8C00", "#A034F0", "#159090"),guide = F) +
scale_fill_manual(values = c("#FF8C00", "#A034F0", "#159090"),guide = F) +
theme(panel.grid.major.y = element_blank(),
axis.text.y = element_text(color = rev(c("#FF8C00", "#A034F0", "#159090")),
size = 12))
通过一系列调整图形之后，终于有了一定的美感；这远远比小提琴图要美观不少，下一节带大家继续更加具体的探索
