❝本节来介绍如何使用「ggplot2」来绘制箭头表格，主要使用「geom_segment」函数来实现，下面小编通过一个案例来进行展示，图形仅供展示用，希望各位观众老爷能够喜欢。数据代码已经整合上传到2023VIP交流群，加群的观众老爷可自行下载。
❞
关注下方公众号下回更新不迷路
加载R包
pacman::p_load(tidyverse, hrbrthemes, ggfittext,ggtext,scales,ggtext )
导入数据
data <- readr::read_csv('product_hunt.csv')
数据清洗
df <- data %>% select(upvotes, category_tags) %>%
separate_rows(category_tags, sep = ", ") %>%
mutate(name_2 = gsub("[^[:alnum:]]", " ",category_tags)) %>%
mutate(name_2 = trimws(name_2))%>%
group_by(name_2) %>%
summarize(total=n()) %>%
mutate(percentage = total/sum(total),
percentage=percent(percentage,accuracy = 0.01)) %>%
top_n(5) %>%
arrange(desc(total))
df <- df %>% arrange(desc(total)) %>% select(2,1,3) %>%
mutate(x_axis = rep(5, each = 10, length = n()),
x_axis_2 = x_axis + 1.2,
x_axis_3 = x_axis + 2.4,
y_axis = rep(-1:-10, length = n()))
定义因子
df$name_2 <- fct_relevel(df$name_2, c("ANDROID","DEVELOPER TOOLS","WEB APP",
"IPHONE","PRODUCTIVITY"))
数据可视化
df %>% ggplot() +
geom_text(aes(x = x_axis, y = y_axis, label = total), hjust = 0.5, fontface = "bold",
color = "#000000", size = 3.5) +
geom_text(aes(x = x_axis_2, y = y_axis, label = name_2), hjust = 0.5, fontface = "bold",
color = "#525252", size = 3) +
geom_text(aes(x = x_axis_3, y = y_axis, label = percentage), hjust = 0.5,fontface = "bold",
color = "#ff0000", size = 3.5) +
geom_text(aes(x = 5, y = 0.2, label = "Total"), hjust = 0.5, fontface = "plain",
color = "#000000", size = 3.5) +
geom_text(aes(x = 6.2, y = 0.2, label = "Category"), hjust = 0.5, fontface = "plain",
color = "#525252", size = 3.5) +
geom_text(aes(x = 7.4, y = 0.2, label = "% Products \nwith tag"), hjust = 0.5,
fontface = "plain", color = "#ff0000", size = 3.5) +
scale_x_continuous(limits = c(4.5,7.9)) +
scale_y_continuous(limits = c(-6.55,0.5)) +
# 左侧方框
geom_segment(aes(x = 4.7, xend = 4.7, y = -5.5, yend = -0.5), color="#000000")+
geom_segment(aes(x = 4.7, xend = 5.3, y = -5.5, yend = -5.5), color="#000000") +
geom_segment(aes(x = 4.7, xend = 5.3, y = -4.5, yend = -4.5), color="#000000") +
geom_segment(aes(x = 4.7, xend = 5.3, y = -3.5, yend = -3.5), color="#000000") +
geom_segment(aes(x = 4.7, xend = 5.3, y = -2.5, yend = -2.5), color="#000000") +
geom_segment(aes(x = 4.7, xend = 5.3, y = -1.5, yend = -1.5), color="#000000") +
geom_segment(aes(x = 4.7, xend = 5.3, y = -0.5, yend = -0.5), color="#000000") +
# 右侧方框
geom_segment(aes(x = 7.7, xend = 7.7, y = -5.5, yend = -0.5), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 7.7, y = -5.5, yend = -5.5), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 7.7, y = -4.5, yend = -4.5), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 7.7, y = -3.5, yend = -3.5), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 7.7, y = -2.5, yend = -2.5), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 7.7, y = -1.5, yend = -1.5), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 7.7, y = -0.5, yend = -0.5), color="#ff0000") +
# 左箭头
geom_segment(aes(x = 5.3, xend = 5.5, y = -5.5, yend = -5), color="#000000") +
geom_segment(aes(x = 5.3, xend = 5.5, y = -4.5, yend = -5), color="#000000") +
geom_segment(aes(x = 5.5, xend = 5.8, y = -5, yend = -5), color="#000000") +
geom_segment(aes(x = 5.3, xend = 5.5, y = -4.5, yend = -4), color="#000000") +
geom_segment(aes(x = 5.3, xend = 5.5, y = -3.5, yend = -4), color="#000000") +
geom_segment(aes(x = 5.5, xend = 5.8, y = -4, yend = -4), color="#000000") +
geom_segment(aes(x = 5.3, xend = 5.5, y = -3.5, yend = -3), color="#000000") +
geom_segment(aes(x = 5.3, xend = 5.5, y = -2.5, yend = -3), color="#000000") +
geom_segment(aes(x = 5.5, xend = 5.8, y = -3, yend = -3), color="#000000") +
geom_segment(aes(x = 5.3, xend = 5.5, y = -2.5, yend = -2), color="#000000") +
geom_segment(aes(x = 5.3, xend = 5.5, y = -1.5, yend = -2), color="#000000") +
geom_segment(aes(x = 5.5, xend = 5.8, y = -2, yend = -2), color="#000000") +
geom_segment(aes(x = 5.3, xend = 5.5, y = -1.5, yend = -1), color="#000000") +
geom_segment(aes(x = 5.3, xend = 5.5, y = -0.5, yend = -1), color="#000000") +
geom_segment(aes(x = 5.5, xend = 5.8, y = -1, yend = -1), color="#000000") +
# 右侧箭头
geom_segment(aes(x = 7.1, xend = 6.9, y = -5.5, yend = -5), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 6.9, y = -4.5, yend = -5), color="#ff0000") +
geom_segment(aes(x = 6.6, xend = 6.9, y = -5, yend = -5), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 6.9, y = -4.5, yend = -4), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 6.9, y = -3.5, yend = -4), color="#ff0000") +
geom_segment(aes(x = 6.6, xend = 6.9, y = -4, yend = -4), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 6.9, y = -3.5, yend = -3), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 6.9, y = -2.5, yend = -3), color="#ff0000") +
geom_segment(aes(x = 6.6, xend = 6.9, y = -3, yend = -3), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 6.9, y = -2.5, yend = -2), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 6.9, y = -1.5, yend = -2), color="#ff0000") +
geom_segment(aes(x = 6.6, xend = 6.9, y = -2, yend = -2), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 6.9, y = -1.5, yend = -1), color="#ff0000") +
geom_segment(aes(x = 7.1, xend = 6.9, y = -0.5, yend = -1), color="#ff0000") +
geom_segment(aes(x = 6.6, xend = 6.9, y = -1, yend = -1), color="#ff0000") +
labs(y =NULL,x=NULL)+
theme(
axis.title.x = element_blank(),
axis.title.y = element_blank(),
axis.text.x = element_blank(),
axis.text.y = element_blank(),
panel.background = element_blank(),
panel.grid.major = element_blank(),
panel.grid.major.y = element_blank(),
panel.grid.minor = element_blank(),
plot.margin = unit(c(1,1,1, 1), "cm"),
plot.background = element_rect(fill = "#fbfaf6", color = NA),
axis.ticks = element_blank(),
legend.position = "none")
❝本节内容主要通过「geom_segment」函数来进行箭头制作，有需要学习个性化数据可视化的朋友，欢迎到小编的「淘宝店铺」 「R语言数据分析指南」购买「2023年度会员文档」同步更新中「售价149元」，内容主要包括各种「高分论文的图表分析复现以及一些个性化图表的绘制」均包含数据+代码；按照往年数据小编年产出约在150+以上
❞
购买后微信发小编订单截图即邀请进新的会员交流群，小编的文档为按年售卖，只包含当年度的「除系列课程外」的文档，有需要往年文档的朋友也可下单购买，需要了解更多信息的朋友欢迎交流咨询。
淘宝扫一扫

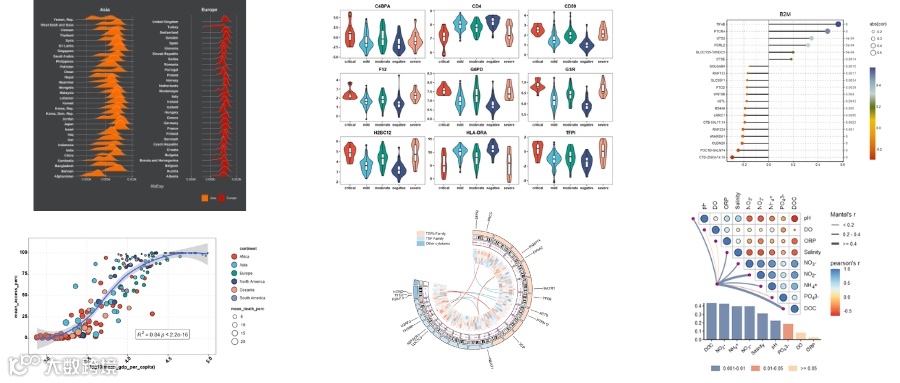

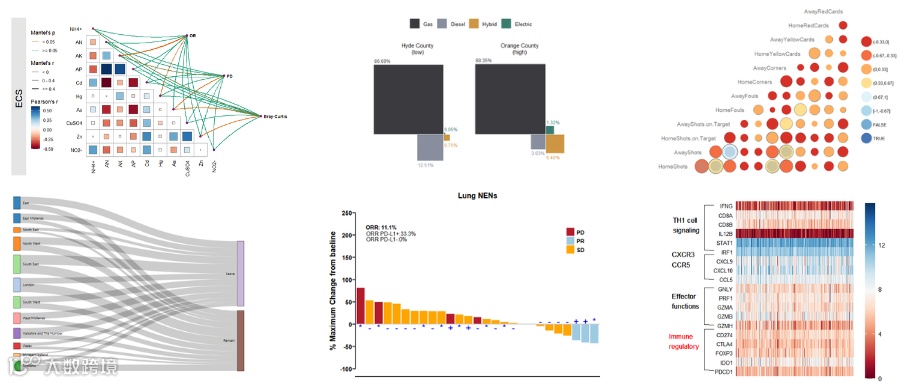

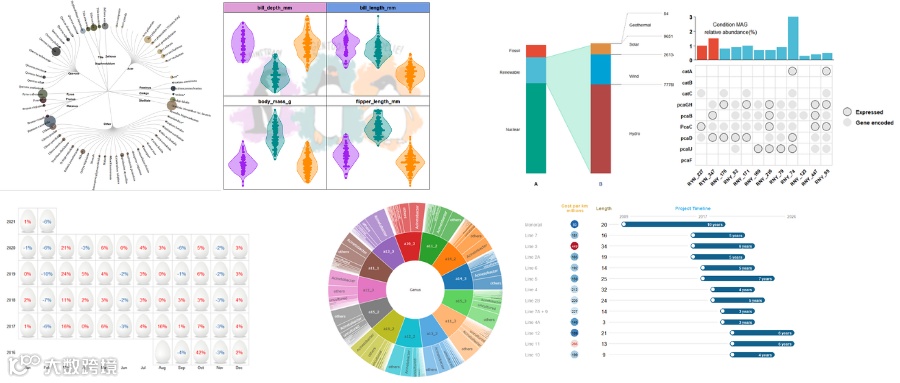

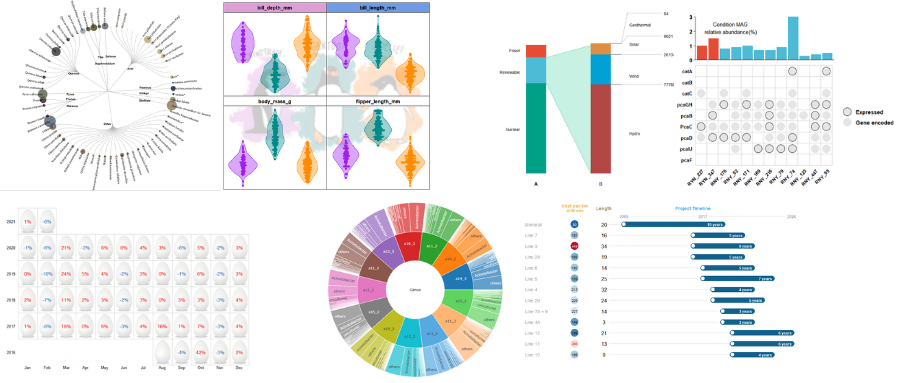

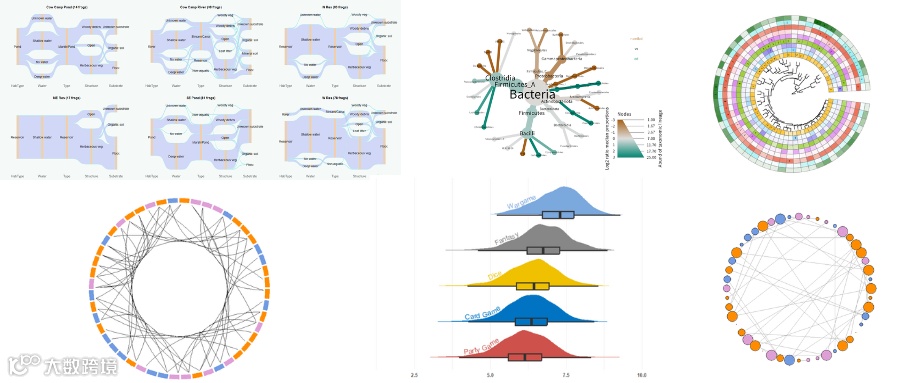

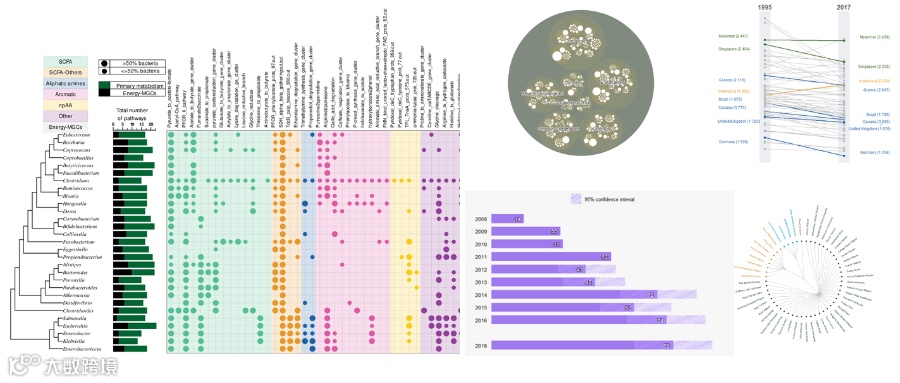

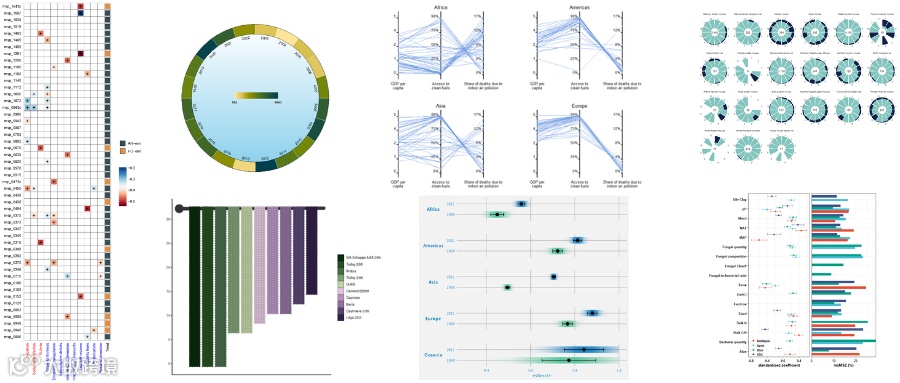

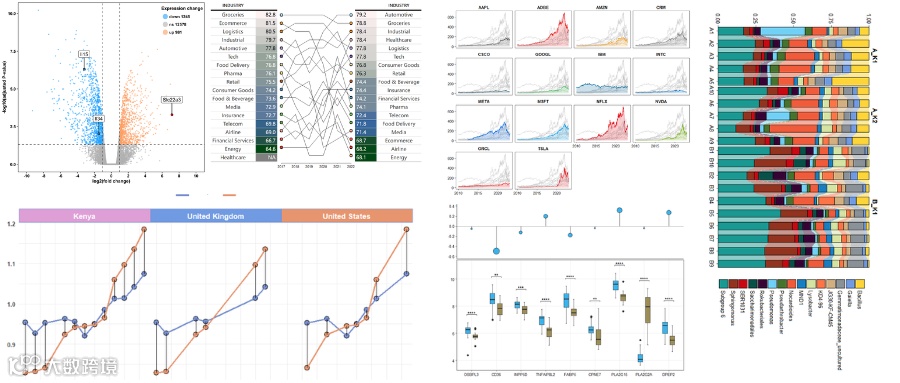

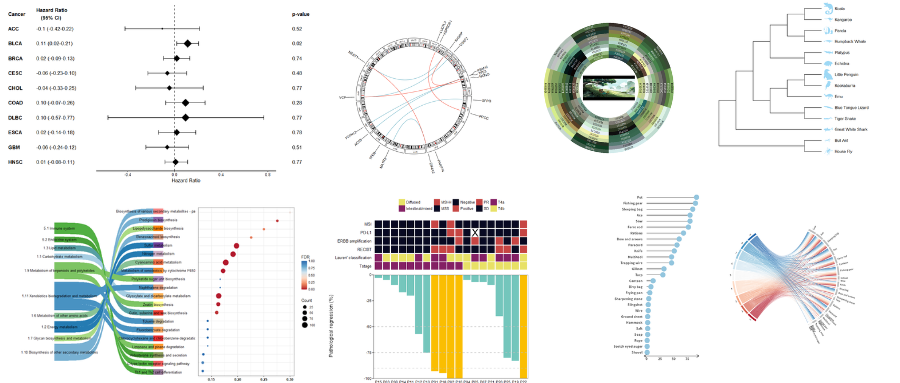

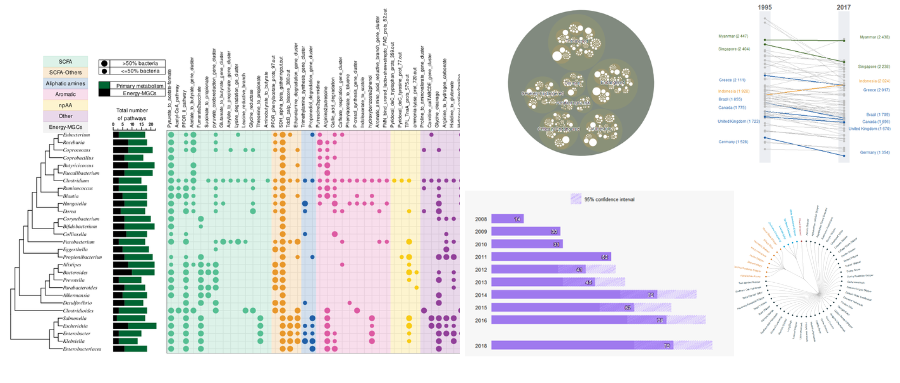

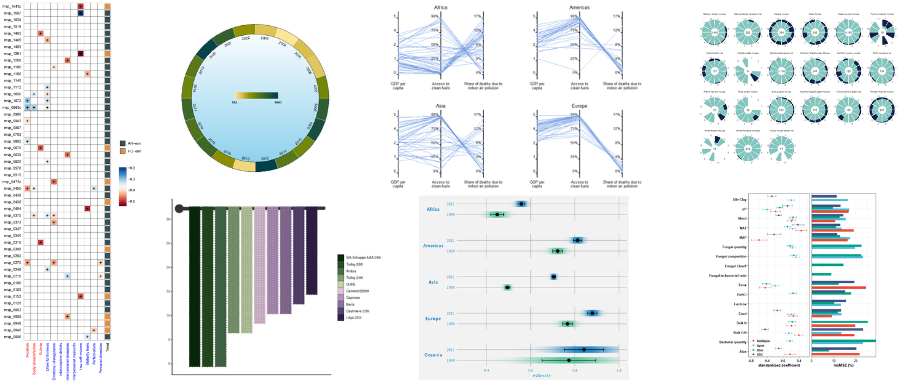

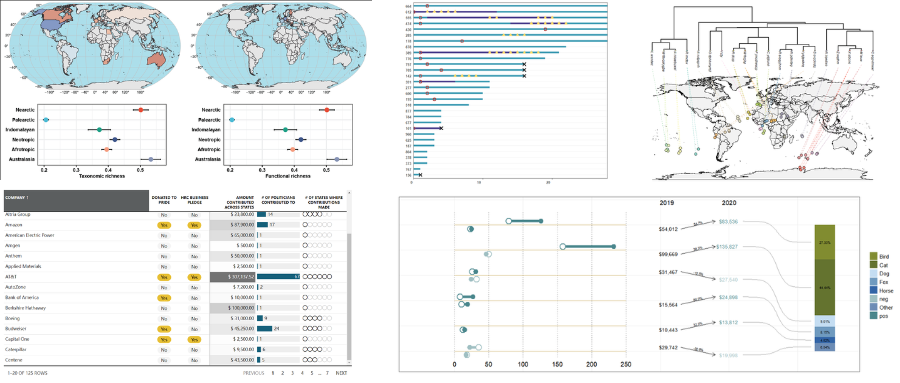

2023会员群案例展示
