| Technical parameter | ||

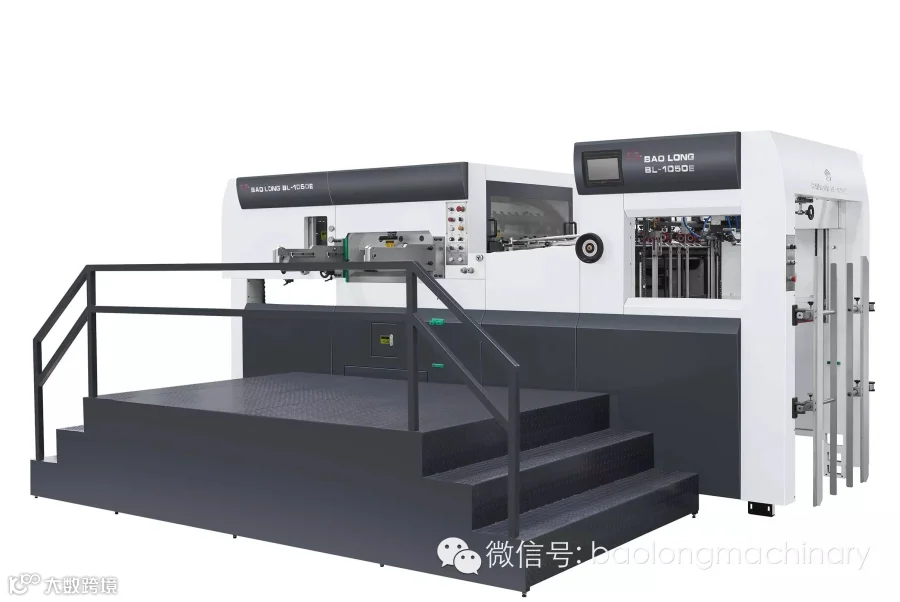

| machine name | BL-1050EH | BL-1050SH |
| max sheet size | 1050 x 750 mm | 1050 x 750 mm |
| min sheet size | 400 x 360 mm | 400 x 360 mm |
| max feeder pile height | 1500 mm | 1500 mm |
| max delivery pile height | 1400 mm | 1400 mm |
| max die cutting size | 1040 x 720 mm | 1040 x 720 mm |
| die cutting plate size | 1080 x 736 mm | 1080 x 736 mm |
| inner chase size | 1140 x 750 mm | 1140 x 750 mm |
| cutting rule height | 23.8mm or 23.6mm | 23.8mm or 23.6mm |
| stock range | 80~2000g/m²cardboard，thickness≦4mm corrugated paper. | |
| 0.2~1mmPVC、PPC、PET plastic sheet materials | ||
| die cutting accuracy | ≤ ± 0.075 | ≤ ± 0.075 |
| Min.holding width | 8 mm（can do no grip) | 8 mm（can do no grip) |
| max die cutting speed | 7500 sheets/h | 7500 sheets/hour |
| max pressure rigidity | 300T | 300T |
| air requirement | dispacement0.36m³/min,discharge pressure:0.6-0.7Mpa | |
| power required | 380V/50HZ three-phase and four-wire | |
| overall power | 43 kw | 44 kw |
| net approx weight | 15T | 16T |
| overall dimension | 6350 x 4250 x 2350 mm | 7300 x 4250 x 2350 mm |
| temperature range | 0℃～200℃ | 0℃～200℃ |
| heating zone | 12 warm area | 12 warm area |
| power of hot plate | 24 kw | 24 kw |
